Shop LEVITON

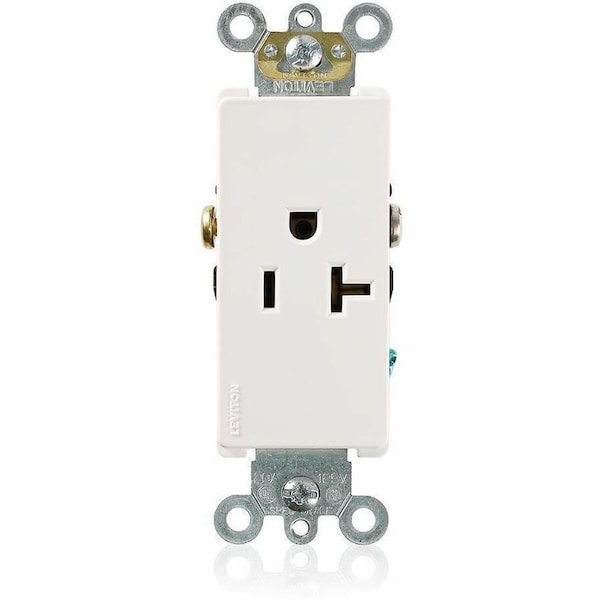

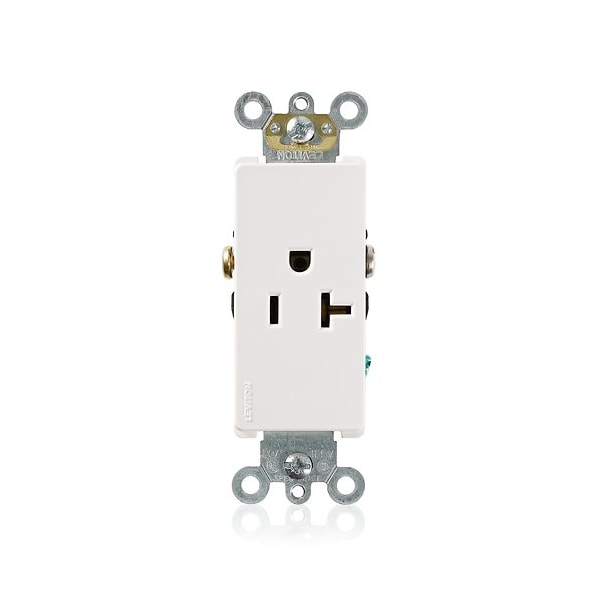

PlugsandReceptacles, 20A, 125VAC, Wht, Nylon

  • Mfr # 16341-W

  • Zoro # G622586477

product price:
$
8.79
/ea

Key Features

Face Plate Height
2.6 in
Minimum Wire Size
14 AWG
Grounding
Grounded
Maximum Wire Size
10 AWG
Mount Type
Flush
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
16341-W
Zoro #
G622586477
UPC #
78477473665
Country of Origin
Mexico
Housing Color
White
Grounding
Grounded
Mount Type
Flush
Grade
General Use
Maximum Operating Temperature
60 Degrees C
Number of Poles
2
For Environment
Food and Beverage, Oily/Greasy
GFCI
No
NEMA Receptacle Configuration
5-20R
AFCI
No
Phase
Single
Number of Outlets
1
Horsepower Rating
1 hp
NEMA Enclosure Rating
Not Rated
Features
Smooth Face
Housing Material
Nylon
IP Rating
Not Rated
Number of Gangs
1
Shrouded
No
Market
Commercial
Polarized
Yes
Surge Protection
No
Wire Connection Type
Screw Terminals
Receptacle Type
Single
Voltage Rating
125V AC
Standards
CSA, FULS Marking, UL
Resistance Properties
Tamper Resistant
Minimum Operating Temperature
-40 Degrees C
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Wiring Method
Side
Cover Type
No Cover
Contact Material
Brass
Current Rating
20 A
Number of Wall Plates Included
0
Item
Plugs and Receptacles
Number of Wires
3
Flange Type
Non-Flanged

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
