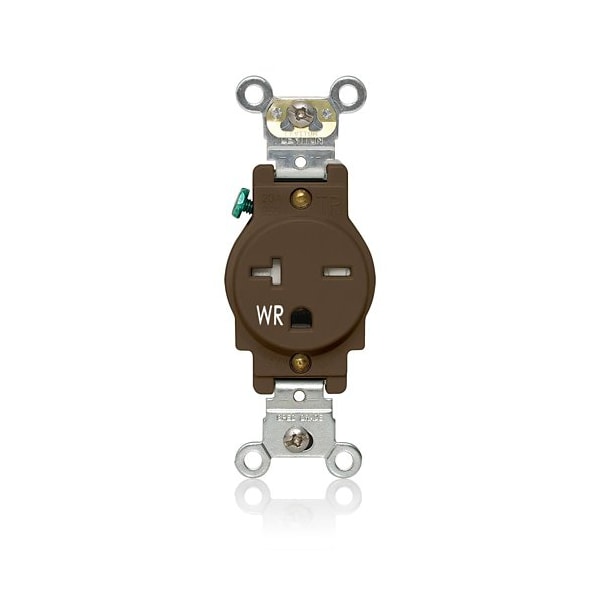

Single Receptacle Outlet, 20A, Brown, 250V
Mfr # W5461-T00
Zoro # G722982308
product price:Â
$
33.89
/ea
Key Features
Connection Orientation
Straight
Grounding
Grounded
Maximum Wire Size
10 AWG
Standards
CSA, FULS Marking, UL
NEMA Receptacle Configuration
6-20R
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- W5461-T00
- Zoro #
- G722982308
- UPC #
- 078477320372
- Country of Origin
- Mexico
- Connection Orientation
- Straight
- Grounding
- Grounded
- Standards
- CSA, FULS Marking, UL
- NEMA Receptacle Configuration
- 6-20R
- Market
- Industrial
- Minimum Operating Temperature
- -40 Degrees C
- Number of Outlets
- 1
- Number of Poles
- 2
- Maximum Operating Temperature
- 75 Degrees C
- For Environment
- Food and Beverage, Oily/Greasy
- Housing Color
- Brown
- Current Rating
- 20 A
- Housing Material
- Nylon
- Features
- Smooth Face
- Number of Wires
- 3
- Wiring Method
- Back/Side
- Voltage Rating
- 250V AC
- UL 94 Flammability Rating
- V-2
- Receptacle Type
- Single
- Contact Material
- Brass
- Horsepower Rating
- 2 hp
- Item
- Single Receptacle Outlet
- Wire Connection Type
- Screw Terminals
- Resistance Properties
- Tamper Resistant, Weather Resistant
Description
Single Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Brown, Housing Material Nylon, NEMA Receptacle Configuration 6-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Single, Resistance Properties Tamper Resistant, Weather Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 2 hp, UL 94 Flammability Rating V-2
