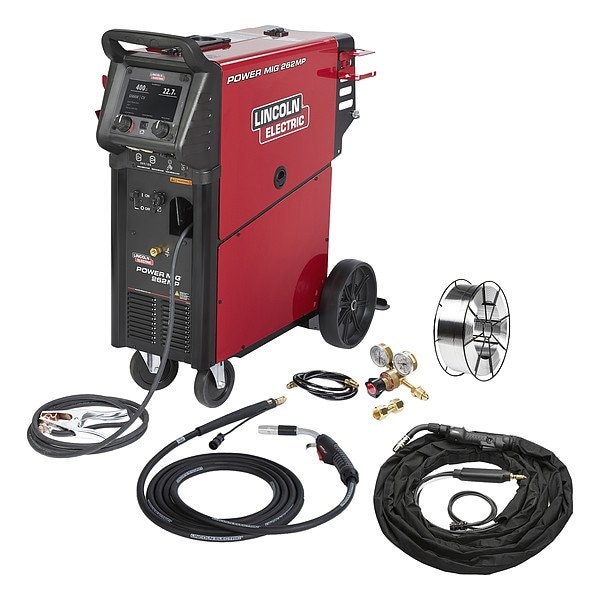

MIG Welder, POWER MIG(R), Single-Phase, 208 V, 230 V, 460 V, 575 V

  • Mfr # K5638-1

  • Zoro # G116173541

product price:  $12,839.99
/ea
Additional $180.00 delivery surcharge applies per item.
See details

Key Features

Series
POWER MIG(R)
Input Voltage
208/230/460/575V AC
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), Flux-Cored Gas-Shielded (FCAW-G), Flux-Cored Self-Shielded (FCAW-S), MIG Welding (GMAW), Pulsed MIG, Stick Welding (SMAW), TIG Welding (GTAW)
Max. Input Current
17.6 A @575 V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
K5638-1
Zoro #
G116173541
UPC #
015082713441
Country of Origin
Mexico

Dimensions

Overall Width
18 in
Overall Height
37.5 in
Power Cord Length
10 ft
Overall Depth
37.5 in
Wire Diameter Aluminum - Maximum
0.035 in
For Stainless Steel Thickness - Maximum
1/2 in
For Aluminum Thickness - Maximum
3/8 in
For Aluminum Thickness - Minimum
3/64 in
For Steel Thickness - Minimum
23/1000 in
Wire Diameter Solid - Maximum
0.04 in
For Steel Thickness - Maximum
1/2 in

Details

Item
Multiprocess Welder
Series
POWER MIG(R)
Input Voltage
208/230/460/575V AC
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), Flux-Cored Gas-Shielded (FCAW-G), Flux-Cored Self-Shielded (FCAW-S), MIG Welding (GMAW), Pulsed MIG, Stick Welding (SMAW), TIG Welding (GTAW)
Max. Input Current
17.6 A @575 V
Weight
295 lb
For Wire Type
Aluminum, Flux-Cored, Solid
MIG Welding Output @ Duty Cycle
230A @ 26.5V, 60%
Model
POWER MIG(R) 262MP
Welding Mode
CC/CV
Input Frequency
60 Hz
Enhanced Process
Pulsed MIG (GMAW-P), Pulsed TIG (GTAW-P)
Power Cord Included
Yes
Polarity
DC
Amperage Range
5 to 300 A
Open Circuit Voltage
90 V
Effective Input Current
17.6 A @ 575V AC, 22.1 A @ 460V AC, 44 A @ 230V AC, 49.1 A @ 208V AC
Color
Black, Red
For Material Type
Aluminum, Stainless Steel, Steel
Features
3 Ways to Feed Aluminum - Electronics Built In For All Three Methods Using A Push Gun, Spool Gun Or APush-Pull Gun., 7-Inch Color Display, Aluminum Pulse Process, Memory Recall- Easily Save And Access Memories With The Enhanced UI, Multi-Process Capable, Rugged MAXTRAC(R) Industrial Wire Drive - Allows for constant wire feed speed and consistent welds, Rugged MAXTRAC(R) Industrial Wire Drive - Allows For Constant Wire Feed Speed And Consistent Welds, Stick Settings for 6010 + 6011- Superior Performance With Cellulosic Electrodes, Synergic Control, Welds 4XXX and 5XXX Series Aluminum, Welds MIG, Flux-Cored, Stick, TIG, And Pulsed MIG
Application
Autobody Repair, Fabrication, General Maintenance
Includes
(1) 10 ft. Power Cable With Plug, (1) 10 ft. Work Cable With Clamp, (1) POWER MIG 262MP Welder, (1) Quick Storage Accessories, Deluxe Adjustable Gas Regulator And Hose Kit K586-1, Drive Roll Kit 3/64 in (1.2 mm) Aluminum Wire KP1695-3/64A, Drive Roll Kit Combination 0.035 in. / 0.045 in. Solid Wire KP1696-1, Magnum(R) PRO 250L Welding Gun - 15 ft. (4.6 m) K4530-2, Magnum(R) PRO AL FC 225 Air 12P RT - 25 ft K4795-2, SuperGlaze(R) 5554 ED029573
Amperage Stick - Maximum
260 A
Maximum Input Current
17.6 A @ 575 V, 22.1 A @ 460 V, 44 A @ 230 V, 49.1 A @ 208 V
Plug Type
6-50P
Welding Power Source Type
CC/CV
Maximum Wire Feed Speed
700 in/min
Rated Output @ Duty Cycle (MIG)
145 A @ 21.5 V, 100%, 230 A @ 25.5 V, 60%, 300 A @ 29 V, 40%
Minimum Wire Feed Speed
50 in/min
Amperage TIG - Minimum
4 A
Rated Output @ Duty Cycle (TIG)
150 A @ 16 V, 100%, 275 A @ 21 V, 60%, 300 A @ 22 V, 40%
Rated Output @ Duty Cycle (Stick)
200 A @ 28 V, 60%, 115 A @ 24.6 V, 100%, 260 A @ 30.4 V, 40%
Amperage Stick - Minimum
4 A
Remote Connection Type
12-Pin (Lincoln), 6-Pin (Lincoln)
Amperage MIG - Minimum
4 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Pulsed MIG Welding (GMAW-P), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage TIG - Maximum
300 A
Amperage MIG - Maximum
300 A

Description

Multiprocess Welder, Series Power MIG 262MP, Input Voltage 208/230/460/575V AC, Phase Single, Welding Mode CC/CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 260 A, TIG Welding Maximum Output Current 300 A, MIG Welding Maximum Output Current 300 A, For Wire Type Aluminum, Flux-Cored, Solid
