Shop LINCOLN ELECTRIC

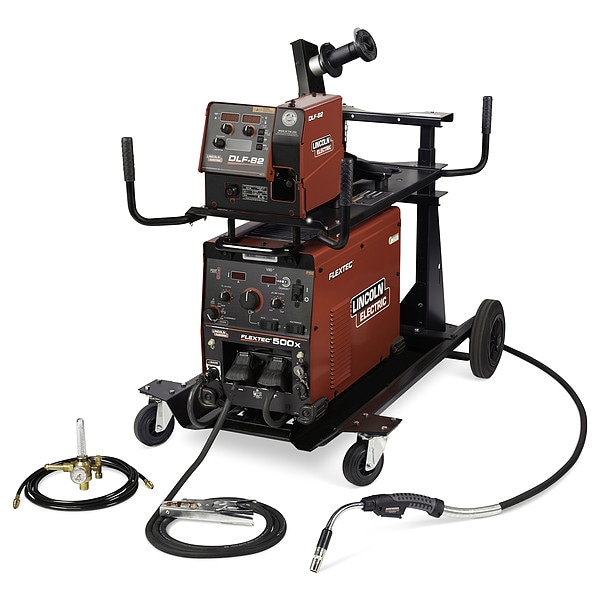

Multiprocess Welder, Flextec 500X, Three-Phase, 380V AC, 460V AC, 575V AC

  • Mfr # K3608-5

  • Zoro # G210081070

product price:  $16,967.99
/ea
Additional $320.00 delivery surcharge applies per item.
See details

Key Features

Series
Flextec 500X
Input Voltage
380/460/575V AC
Phase
Three
Welding Processes
MIG Welding (GMAW)
Overall Depth
27.5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K3608-5
Zoro #
G210081070
UPC #
015082991313
Country of Origin
Multiple

Dimensions

Overall Depth
27.5 in
Overall Width
14 in
Overall Height
40 in
Maximum Wire Diameter
0.0625 in (Aluminum), 0.0625 in (Metal Core), 0.0625 in (Steel), 0.0625 in (Stainless Steel)
Power Cord Length
10 ft
Minimum Wire Diameter
0.030 in (Stainless Steel) (Synergic CV), 0.030 in (Steel) (Synergic CV), 0.035 in (Aluminum) (Synergic CV), 0.035 in (Aluminum) (Synergic Pulsed), 0.035 in (Stainless Steel) (Synergic Pulsed), 0.035 in (Steel) (Synergic Pulsed), 0.045 in (Metal Core) (Synergic CV), 0.045 in (Metal Core) (Synergic Pulsed)
For Minimum Material Thickness
1/8 in (Aluminum), 20 Ga (Stainless), 20 Ga (Steel)
For Maximum Material Thickness
1/2 in (Aluminum), 5/8 in (Stainless), 5/8 in (Steel)
Wire Diameter Solid - Maximum
0.0625 in
Wire Diameter Aluminum - Maximum
0.0625 in
For Aluminum Thickness - Maximum
1/2 in
For Aluminum Thickness - Minimum
1/8 in
For Steel Thickness - Maximum
5/8 in
For Stainless Steel Thickness - Minimum
20 ga
For Stainless Steel Thickness - Maximum
5/8 in
For Steel Thickness - Minimum
20 ga
Wire Diameter Aluminum - Minimum
0.035 in
Wire Diameter Solid - Minimum
0.03 in

Details

Item
Multiprocess Welder
Series
Flextec 500X
Input Voltage
380/460/575V AC
Phase
Three
Welding Processes
MIG Welding (GMAW)
Includes
355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit, Cart, DLF-82 Bench Model (with Gun), DLF-Feeder Cart Mounting Bracket, Flextec(R) 500X Locking Foot Kit, Flextec(R) 500X Multi-Process Welder, Lug to Lug (3/0, 600A, 60%)10 ft (3 m) Weld Power Cable
Application
General Fabrication
Features
Lincoln Ready-Paks are Fully Assembled Just Connect Power and Add Wire and Shielding Gas, Synergic Weld Modes One Knob Control Set Higher Wire Feed Speeds for Thicker Materials and Lower Wire Feed Speeds for Thinner Materials Voltage is Automatically Adjusted
Standards
CSA
Input Frequency
50/60 Hz
MIG Welding Maximum Output Current
500 A
Model
Flextec 500
Maximum Wire Feed Speed
800 in/min
MIG Welding Output @ Duty Cycle
500 A, 60%
For Wire Type
Flux-Cored, Solid
Remote Connection Type
5-Pin (Lincoln)
Welding Mode
CC/CV
Power Cord Included
Yes
Minimum Wire Feed Speed
50 in/min
For Material Type
Aluminum, Metal Core, Stainless Steel, Steel
MIG Welding Minimum Output Current
5 A
Polarity
DC
Weight
136 lb
Enhanced Process
Pulsed MIG (GMAW-P)
Color
Black, Red
Amperage Range
30 - 500 Amps
Stick Welding Maximum Output Current
500 A
TIG Welding Maximum Output Current
500 A
TIG Welding Minimum Output Current
10 A
Stick Welding Minimum Output Current
15 A
Open Circuit Voltage
60 V DC
Stick Welding Output @ Duty Cycle
450 A @ 38 V, 100%, 500 A @ 40 V, 60%
Effective Input Current
33A @ 380V AC (Three-Phase), 27 A @ 460V AC (Three-Phase), 27 A @ 575V AC (Three-Phase), 32 A @ 460V AC (Three-Phase), 32 A @ 575V AC (Three-Phase), 39A @ 380VAC (Three-Phase)
Max. Input Current
32 A @ 575V AC (Three-Phase), 32 A @ 460V AC (Three-Phase), 39 A @ 380V AC (Three-Phase)
TIG Welding Output @ Duty Cycle
450 A @ 28 V, 100%, 500 A @ 30 V, 60%
Amperage Stick - Maximum
500 A
Maximum Input Current
32 A @ 575V AC (Three-Phase), 32 A @ 460V AC (Three-Phase), 39 A @ 380V AC (Three-Phase)
Process
MIG Welding (GMAW)
Rated Output @ Duty Cycle (TIG)
450 A @ 28 V, 100%, 500 A @ 30 V, 60%
Rated Output @ Duty Cycle (MIG)
500 A, 60%
Amperage Stick - Minimum
15 A
Amperage TIG - Maximum
500 A
Welding Power Source Type
CC/CV
Rated Output @ Duty Cycle (Stick)
450 A @ 38 V, 100%, 500 A @ 40 V, 60%
Amperage MIG - Minimum
5 A
Amperage TIG - Minimum
10 A
Amperage MIG - Maximum
500 A

Description

Multiprocess Welder, Series Flextec 500X, Input Voltage 380/460/575V AC, Phase Three, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes MIG Welding (GMAW), Stick Welding Maximum Output Current 500 A, TIG Welding Maximum Output Current 500 A, MIG Welding Maximum Output Current 500 A, For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.0625 in (Aluminum), 0.0625 in (Metal Core), 0.0625 in (Steel), 0.0625 in (Stainless Steel), Maximum Wire Feed Speed 800 in/min
