Shop MILLER ELECTRIC

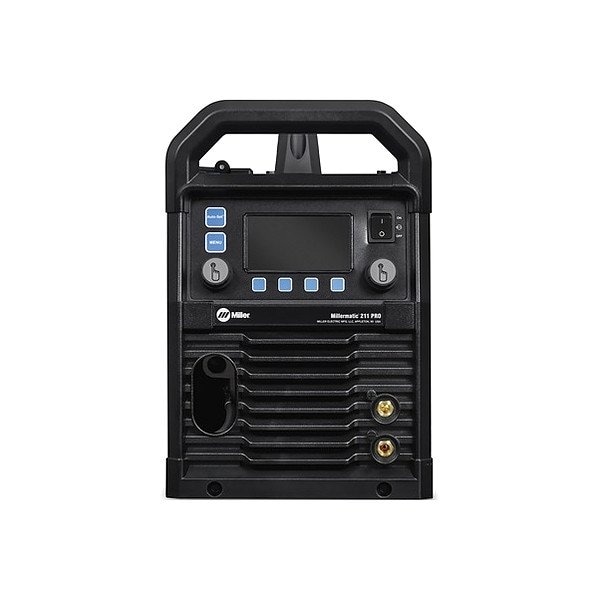

Mig Welder, Millermatic 211 PRO

  • Mfr # 907839

  • Zoro # G821689313

product price:
$
2,428.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Wire Diameter Solid - Maximum
0.035 in
Features
Angled Drive System with Quick Select Drive Roll, Auto Spool Gun Detect, Auto-Set Technology, Generator Compatible, Inverter Technology, Quick Select Drive Roll, Smooth-Start, USB Port, Weld Longer
Overall Height
14.63 in
Phase
Single
Rated Output @ Duty Cycle (MIG)
110 A @ 19.5 VDC, 60% (120 V), 120 A @ 20 VDC, 100% (240 V), 130 A @ 20.5 VDC, 25% (120 V), 160 A @ 22 VDC, 60% (240 V), 215 A @ 24.8 VDC, 30% (240 V), 80 A @ 18 VDC, 100% (120V), 90 A @ 18.5 VDC, 100% (120 V)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907839
Zoro #
G821689313
UPC #
715959719360
Country of Origin
United States

Dimensions

Wire Diameter Solid - Maximum
0.035 in
Overall Height
14.63 in
For Aluminum Thickness - Minimum
18 ga
For Steel Thickness - Maximum
3/8 in
Wire Diameter Flux-Cored - Minimum
0.03 in
Overall Depth
20 in
For Stainless Steel Thickness - Minimum
24 ga
For Aluminum Thickness - Maximum
3/8 in
Power Cord Length
6 1/2 ft
Wire Diameter Flux-Cored - Maximum
0.035 in
For Stainless Steel Thickness - Maximum
3/8 in
For Steel Thickness - Minimum
24 ga
Wire Diameter Solid - Minimum
0.024 in
Overall Width
9.75 in

Details

Features
Angled Drive System with Quick Select Drive Roll, Auto Spool Gun Detect, Auto-Set Technology, Generator Compatible, Inverter Technology, Quick Select Drive Roll, Smooth-Start, USB Port, Weld Longer
Item
Mig Welder
Phase
Single
Rated Output @ Duty Cycle (MIG)
110 A @ 19.5 VDC, 60% (120 V), 120 A @ 20 VDC, 100% (240 V), 130 A @ 20.5 VDC, 25% (120 V), 160 A @ 22 VDC, 60% (240 V), 215 A @ 24.8 VDC, 30% (240 V), 80 A @ 18 VDC, 100% (120V), 90 A @ 18.5 VDC, 100% (120 V)
Color
Blue
Amperage MIG - Minimum
30 A
Amperage MIG - Maximum
230 A
For Material Type
Aluminum, Steel
Polarity
DC
For Wire Type
Aluminum, Flux-Cored, Solid
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Application
Automotive Welding, Car Restoration, Fabrication, Garage/Shop, Mobile Fabrication and MRO, Welding Projects
Maximum Wire Feed Speed
600 m/min
Input Voltage
120/240V AC
Plug Type
5-15P, 6-50P
Includes
15 ft MDX(TM)-100 MIG Gun, 15 ft Work Cable with clamp, 229895 Material Thickness Gauge, 6.5 ft Power Cord and MVP(TM) Adapter Plugs, Argon and AR/CO2 Mix Regulator/Flow Gauge with Hose, Hook-and-Loop Cord Wraps, Millermatic 211 PRO, Quick Select(TM) Drive Roll for 0.024 in or 0.030/0.035 in Solid Wire and 0.030/0.035 Flux Cored Wire, Two Contact Tips for 0.030 in Wire
Weight
35 lb
Input Frequency
50/60 Hz
Welding Power Source Type
CV
Minimum Wire Feed Speed
60 in/min
Power Cord Included
Yes

Description

Mig Welder, Series Millermatic 211 PRO, Input Voltage 120/240V AC, Phase Single, Welding Mode CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Aluminum, Flux-Cored, Solid, Maximum Wire Diameter .035 in (Flux Core), .035 in (Solid Steel), .035 in (Stainless), Maximum Wire Feed Speed 600 m/min, Remote Connection Type Not Applicable, Model Millermatic 211
