  9. Electric Operated Drum Pump, 115VAC, 8 Max. Flow Rate , 1/10 HP, Polypropylene, 3/4" Inlet

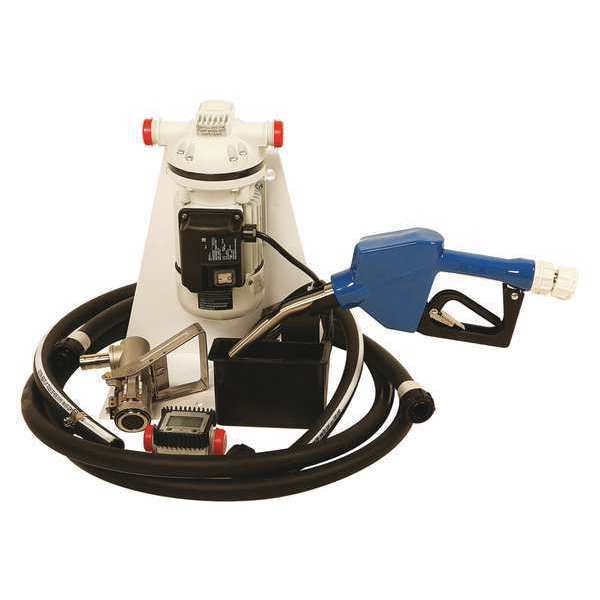

Liquidynamics Electric Operated Drum Pump, 115VAC, 8 Max. Flow Rate , 1/10 HP, Polypropylene, 3/4" Inlet DS15H20TAPXXRSV - main

Electric Operated Drum Pump, 115VAC, 8 Max. Flow Rate , 1/10 HP, Polypropylene, 3/4" Inlet

  • Mfr # DS15H20TAPXXRSV

  • Zoro # G4573278

product price: $1,667.99
/ea
Free Shipping & Returns

Key Features

Voltage
115VAC
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP
1/10
Housing Material
Polypropylene
GPM
8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS15H20TAPXXRSV
Zoro #
G4573278
UPC #
-
Country of Origin
Italy

Dimensions

Inlet Size
3/4"
Overall Height
16"
Overall Width
12"
Hose Dia.
3/4"
Cord Length
54 in
Outlet Size
3/4" Barb
Hose Length
20 ft
Overall Length
48 in
Manufacturers Warranty Length
14 yr. Pump, 1 yr. Dispensing System
Suction Tube Length
48 in
For Container Size
55 gal, 275 gal, 330 gal
Height Above Container
4 in
Spout Length
6 in
Hose Outside Dia.
1 in
Hose Inside Dia.
3/4 in
Spout Discharge Size
3/4 in

Details

Voltage
115VAC
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP
1/10
Housing Material
Polypropylene
GPM
8
Seal Material
EPDM
Pump Design
Nutating Diaphragm
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
10 cps
Item
Electric Operated Drum Pump
Features
Dispenses 8 gpm
Max. Pressure
35 psi
Agency Compliance
ISO
For Use With
Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Adapter Material
316 Stainless Steel
Bypass Valve
Internal
Gasket Material
EPDM
Max. Head
48 ft.
Wetted Materials
EPDM, Polypropylene, Stainless Steel
Motor Type
2 Pole
Pump Body Material
Polypropylene
Pressure Range
23 psi
Amps
3.5
Max. GPM for Water
8
Bearing Type
Sealed Ball
Duty Cycle
Intermittent
Includes
Coupler, Drip Cup, Hose, Meter, Nozzle, Nozzle Hanger, Side Mount Hanger
pH Range
5.0 to 10
Nozzle Type
Automatic
Hose Material
Peroxide Cured EPDM
Motor Enclosure
IP55
Adapter Type
RSV
Duty
Intermittent
Hz
60
Max. Liquid Temp.
104 Degrees F
Inlet
3/4"
Max. Specific Gravity
1.09
Metered
No
Phase
1
Suction Lift
6 ft.
Max. Temp.
104 Degrees F
Transfer Pump Application
Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Nozzle Material
Stainless Steel
Shaft Material
Stainless Steel
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Diesel Exhaust Fluid Compatible
Yes
Runs Dry
Yes
Suction Tube Material
EPDM
Noise Level
70 db
Frequency (Hz)
60 Hz
Includes Bung Adapter
No
Includes Suction Tube
Yes
Pump Connection OD
1 in
Motor HP
1/10 hp
Discharge Tube Outlet OD
1 in
Pump Connection Type
Hose Barb
Spout Material
316 Stainless Steel
Spout Connection Type
Integral to Nozzle
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Includes Spout
Yes
Discharge Tube Outlet ID
3/4 in
For Container Type
Drum, Tote
Hose Cover Material
Thermal Plastic
Nozzle Operation
Automatic
Motor RPM
1,750 RPM
Suction Tube OD
1 in
Power Source
Electric
Max. Oil Flow
8 gpm
Hose Tube Material
EPDM
Compatible Chemicals
Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)
Includes Nozzle
Yes
Suction Tube ID
3/4 in
Includes Discharge Hose
Yes
Housing Material - Pumps
Polypropylene
Max. Head Pressure
23 psi
Max. Head - Pumps
48 ft
Food Grade
No
Discharge Connection Type
Hose Barb
Max. Fluid Temp.
104 Degrees F
Max. Flow Rate
8 gpm
Variable Speed
No
Number of Phases
1
Full Load Amps
4.5 A
Min. Fluid Temp.
17 Degrees F
Grease
NT
Max. Outlet Pressure
23 psi
Explosion Proof
No
Rated Voltage
115V AC
Gear Lube
NT

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 23 psi, Max. Oil Flow 8 gpm, Max. Outlet Pressure 23 psi, For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid, Rated Voltage 115 V AC, Plug Type NEMA 5-15-P, Pump Connection ID 3/4 in, Suction Tube OD 1 in, Hose Length 20 ft, Suction Tube Length 48 in, Cord Length 54 in, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Automatic, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
