  9. Electric Operated Drum Pump, 12VDC, 8 Max. Flow Rate , 1/10 HP, Polypropylene, 3/4" Inlet
Liquidynamics Electric Operated Drum Pump, 12VDC, 8 Max. Flow Rate , 1/10 HP, Polypropylene, 3/4" Inlet DS12H20XMPXXRSV - main

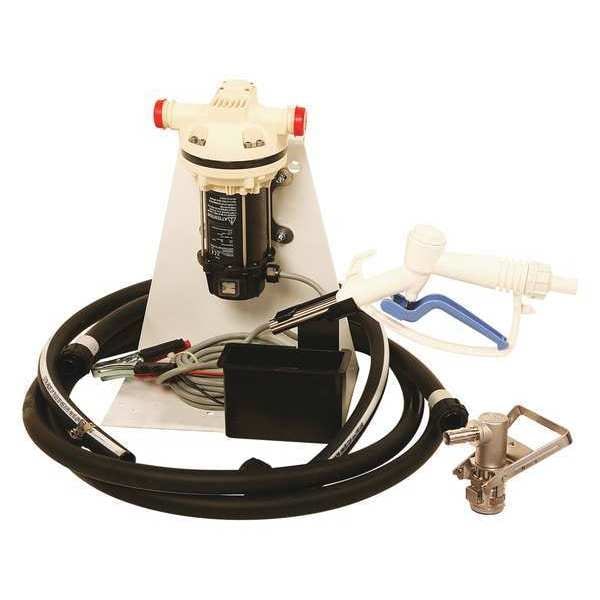

Electric Operated Drum Pump, 12VDC, 8 Max. Flow Rate , 1/10 HP, Polypropylene, 3/4" Inlet

  • Mfr # DS12H20XMPXXRSV

  • Zoro # G4573311

product price: $1,222.99
/ea
Free Shipping & Returns

Key Features

Voltage
12VDC
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP
1/10
Housing Material
Polypropylene
GPM
8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS12H20XMPXXRSV
Zoro #
G4573311
UPC #
-
Country of Origin
Italy

Dimensions

Inlet Size
3/4"
Overall Height
16"
Overall Length
48 in
Cord Length
18 ft
Hose Length
20 ft
Hose Dia.
3/4"
Manufacturers Warranty Length
10 yr. Pump, 1 yr. Dispensing System
Outlet Size
3/4" Barb
Overall Width
12"
Suction Tube Length
48 in
Hose Outside Dia.
1 in
Height Above Container
4 in
Hose Inside Dia.
3/4 in
For Container Size
55 gal, 275 gal, 330 gal
Spout Length
3 in
Spout Discharge Size
3/4 in

Details

Voltage
12VDC
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP
1/10
Housing Material
Polypropylene
GPM
8
Seal Material
EPDM
Pump Design
Nutating Diaphragm
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
10 cps
Item
Electric Operated Drum Pump
Max. Specific Gravity
1.09
Adapter Material
316 Stainless Steel
Max. GPM for Water
8
Max. Pressure
31 psi
Hose Material
Peroxide Cured EPDM
Inlet
3/4"
Includes
Coupler, Drip Cup, Hose, Nozzle, Nozzle Hanger, Side Mount Hanger
Agency Compliance
ISO
Amps
3.5
Transfer Pump Application
Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Adapter Type
RSV
Hz
60
Bypass Valve
Internal
Shaft Material
Stainless Steel
Duty
Intermittent
Pressure Range
23 psi
Motor Enclosure
IP55
Phase
1
Suction Lift
6 ft.
Pump Body Material
Polypropylene
Wetted Materials
EPDM, Polypropylene, Stainless Steel
Max. Head
48 ft.
Nozzle Material
Poly, Stainless Steel
pH Range
5.0 to 10
For Use With
Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Gasket Material
EPDM
Features
Dispenses 8 gpm
Duty Cycle
Intermittent
Max. Temp.
104 Degrees F
Motor Type
2 Pole
Nozzle Type
Manual
Bearing Type
Sealed Ball
Max. Liquid Temp.
104 Degrees F
Metered
Yes
Pump Connection OD
1 in
Includes Bung Adapter
No
Plug Type
Spring Clamp
Motor RPM
2,600 RPM
Hose Tube Material
EPDM
Suction Tube ID
3/4 in
Discharge Tube Outlet OD
1 in
Housing Material - Pumps
Polypropylene
Compatible Chemicals
Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)
Includes Nozzle
Yes
Variable Speed
No
Noise Level
70 db
Spout Material
316 Stainless Steel
For Container Type
Drum, Tote
Hose Cover Material
Thermal Plastic
Nozzle Operation
Manual
Power Source
Electric
Suction Tube OD
1 in
Full Load Amps
22.0 A
Runs Dry
Yes
Motor HP
1/10 hp
Includes Suction Tube
Yes
Includes Discharge Hose
Yes
Max. Head Pressure
23 psi
Max. Fluid Temp.
104 Degrees F
Max. Flow Rate
8 gpm
Max. Oil Flow
8 gpm
Food Grade
No
Includes Spout
Yes
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Spout Connection Type
Integral to Nozzle
Discharge Connection Type
Hose Barb
Diesel Exhaust Fluid Compatible
Yes
Number of Phases
1
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Discharge Tube Outlet ID
3/4 in
Pump Connection Type
Hose Barb
Suction Tube Material
EPDM
Max. Head - Pumps
48 ft
Min. Fluid Temp.
17 Degrees F
Explosion Proof
No
Grease
NT
Rated Voltage
12V DC
Max. Outlet Pressure
23 psi
Gear Lube
NT

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 23 psi, Max. Oil Flow 8 gpm, Max. Outlet Pressure 23 psi, For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid, Rated Voltage 12 V DC, Plug Type Spring Clamp, Pump Connection ID 3/4 in, Suction Tube OD 1 in, Hose Length 20 ft, Suction Tube Length 48 in, Cord Length 18 ft, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Manual, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
