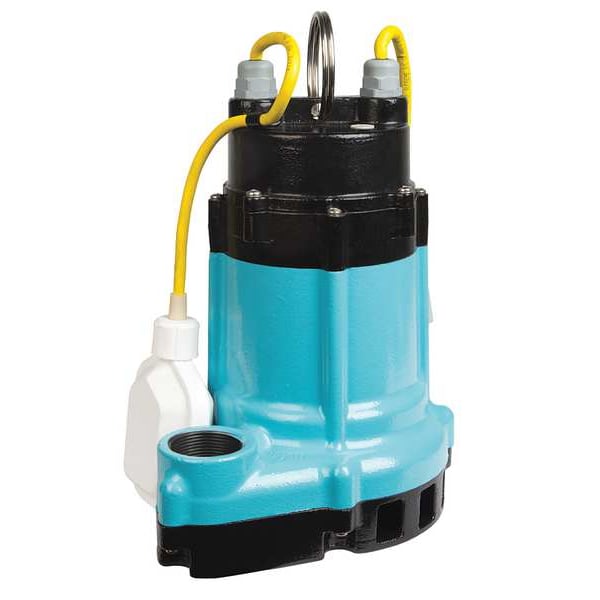

Little Giant Pump 1/2 HP 1-1/2" F Submersible Sump Pump 115V Wide Angle Float 511710 - main

1/2 HP 1-1/2" F Submersible Sump Pump 115V Wide Angle Float

  • Mfr # 511710

  • Zoro # G9123947

product price: $764.99
/ea
Free Shipping & Returns

Key Features

Cord Length
15 ft
Discharge NPT
1-1/2" F
Housing Material
Epoxy Coated Cast Iron
HP
1/2
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
511710
Zoro #
G9123947
UPC #
010121146655
Country of Origin
Mexico

Dimensions

Cord Length
15 ft
Min. Sump Pit Dia.
18 in
Height
11-5/32"
Diameter
6-49/64"
Cord Length - Pumps
9 ft.
Max. Diameter Solids
1/2 in
Max. Dia. Solids
1/2"
Manufacturers Warranty Length
3 yr
Discharge Dia.
1 1/2 in
Body Dia.
6 49/64 in
Overall Height
11 1/4 in
Solids Diameter - Maximum
3/4 in
Discharge Diameter
1 1/2 in
Width at Widest Point
9 in
Body Diameter
6 3/4 in
Sump Pit Diameter - Minimum
18 in

Details

Discharge NPT
1-1/2" F
Housing Material
Epoxy Coated Cast Iron
HP
1/2
Hz
60 Hz
Impeller Material
Nylon
Includes
Float Switch
Max. Head
30 ft
Max. Temp.
200 Degrees F
Motor RPM
1750
Motor Type
Permanent Split Capacitor
Shaft Seal
Fluor elastomer with Carbon and Ni-Resist Faces
Voltage
115V
Phase
Single
Features
Automatic Operation, Continuous Duty, 200 Degrees F of Water
Max. Liquid Temp.
200 Degrees F
Thermal Protection
Auto
Mechanical Seal
Carbon/Ceramic
Switch Type - Pumps
Wide Angle Float
GPM of Water @ 10 Ft. of Head
61
Amps
8.0 A
Impeller Material - Pumps
Nylon
Duty
Continuous
Voltage - Pumps
120VAC
NEC Cord Designation
SJTW
GPM of Water @ 25 Ft. of Head
24
Gauge/Conductor
16/3
GPM of Water @ 15 Ft. of Head
50
GPM of Water @ 20 Ft. of Head
40
GPM of Water @ 30 Ft. of Head
0
Switch Type
Wide Angle Float
Agency Compliance
cCSAus
Item - Sump Pumps
Submersible Sump Pump
Base Material
Cast Iron
Pump Body Material
Cast Iron
Bearing Type
Sleeve
Item
Submersible Sump Pump
Max. Head - Pumps
30 ft.
Alarm
No
On Point
9 - 14 in
Amps - Pumps
8.00
Alarm Included
No
GPM of Water @ 5 Ft. of Head
67
Off Point
2 - 4 in
Application
Dewatering, Transfer, Waste Removal
Duty Cycle
Continuous
Flow Rate @ 10 Ft. of Head
65 gpm
Discharge
1-1/2 in FNPT
Body Material
Cast Iron
Rated Voltage
115V AC
Discharge Gender
Female
Switch Actuation
Tether Float
RPM
1,750 RPM
Flow Rate @ 20 Ft. of Head
40.0 gpm
Flow Rate @ 5 Ft. of Head
75.0 gpm
Flow Rate @ 15 Ft. of Head
60.0 gpm
Switch Electrical Connection
Integral
For Media Type
Effluent Water
Feet of Head - Maximum
30 ft
Hazardous Location Class
Not Rated
Operation
Automatic
Rotation Speed - Maximum
1,750 RPM
Requires Control Panel
No Control Panel Required
Motor Housing Material
Cast Iron
Impeller Design
Non-Clog
Shaft Seal Type
Single Mechanical
Includes Alarm
No Alarm Included
Installation
Submersible
Series
HT-10EN-CIA-FS
Volute Material
Cast Iron
Current
10.5 A
Frequency
60 Hz
Standards
cCSAus
Flow Rate @ 10 ft of Head
65 gpm
Discharge Standard
NPT
Power Source
Corded Electric
Horsepower
1/2 hp
For Industry
Residential
Liquid Temperature - Maximum
200 Degrees F
Shaft Seal Material
Ceramic/Nitrile Rubber

Description

Submersible Sump Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Amps 8.0 A, Switch Actuation Tether Float, Switch Electrical Connection Integral, Off Point 2 - 4 in, On Point 9 - 14 in, Body Material Cast Iron, Impeller Material Nylon, Flow Rate @ 5 Ft. of Head 75.0 gpm, Flow Rate @ 10 Ft. of Head 65 gpm, Flow Rate @ 15 Ft. of Head 60.0 gpm, Flow Rate @ 20 Ft. of Head 40.0 gpm, Max. Head 30 ft, Min. Sump Pit Dia. 18 in, Body Dia. 6 49/64 in, Overall Height 11 1/4 in, Discharge 1-1/2 in FNPT
