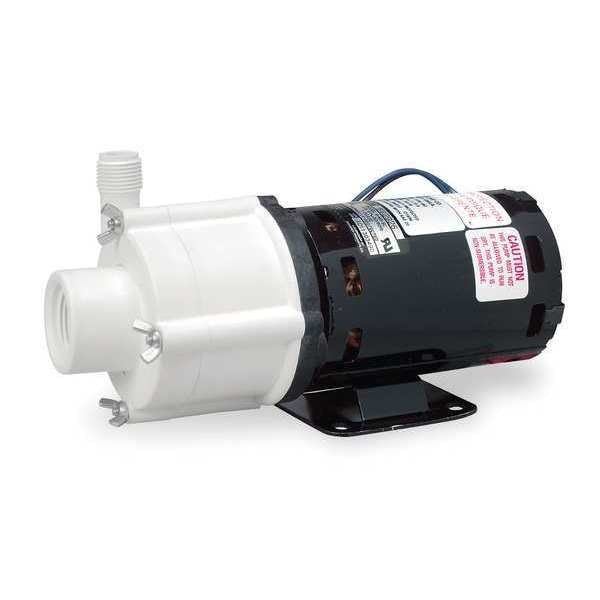

1/8 HP Polypropylene Magnetic Drive Pump 115V 1" FPT

  • Mfr # 583503

  • Zoro # G1935857


product price: $359.99
/ea
Free Shipping & Returns

Key Features

HP
1/8 hp
Voltage
115
Inlet
1 in FPT
Outlet
1/2 in MPT
Max. Head
27.5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
583503
Zoro #
G1935857
UPC #
010121839137
Country of Origin
Mexico

Dimensions

Length
8 3/4 in
Width
5 1/2 in
Cord Length
6 ft
Height
5 41/64 in
Manufacturers Warranty Length
1 yr
Discharge Pipe Size
1/2 in
Intake Pipe Size
1 in
Overall Width
5.4 in
Overall Length
8.8 in
Overall Height
5.5 in

Details

Item
Magnetic Drive Pump
HP
1/8 hp
Voltage
115
Inlet
1 in FPT
Outlet
1/2 in MPT
Max. Head
27.5 ft
Operating Pressure
11.9 psi
Housing Material
Glass-Filled Polypropylene
Cord Type
3-conductor SJP
GPM of Water @ 3 Ft. of Head
16.5 gpm
Gasket Material
Buna-N
Motor Enclosure
Open Fan Cooled
Motor Type
Permanent Split Capacitor
Design
Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
Full Load Amps
2.00
GPM of Water @ 18 Ft. of Head
9.2 gpm
Temp. @ 30 psig
70 Degrees F
Temp. @ 10 psig
120 Degrees F
Application
For Mild Chemicals at Moderate Temperature, Eliminates Seal-caused Friction Loss, Wear, Contamination and Leakage
GPM of Water @ 6 Ft. of Head
15.3 gpm
GPM of Water @ 9 Ft. of Head
14 gpm
Max. Viscosity
100 SSU
Temp. @ 20 psig
90 Degrees F
Temp. @ 0 psig
150 Degrees F
GPM of Water @ 24 Ft. of Head
4.4 gpm
GPM of Water @ 15 Ft. of Head
10.9 gpm
Mounting
Horizontal
Bearing Type
Thrust
Series
MD-SC
Impeller Material
Glass-Filled Polypropylene
Max. Specific Gravity
1.1
Discharge Pipe Type
NPT
Flow Rate @ 6 ft of Head (Maximum)
15.3 gpm
Phase
Single
Horsepower (Maximum)
1/8 hp
Flow Rate @ 15 ft of Head (Maximum)
10.9 gpm
Specific Gravity (Maximum)
1.1
Intake Pipe Type
FNPT
Flow Rate @ 9 ft of Head (Maximum)
14 gpm
Nameplate Voltage
115V AC
Full Load Current
2 A
Flow Rate @ 24 ft of Head (Maximum)
3 gpm
Flow Rate @ 18 ft of Head (Maximum)
9.2 gpm
Operating Pressure (Maximum)
11.9 psi
Viscosity (Maximum)
100 SUS
Feet of Head (Maximum)
27.5 ft
Ambient Temperature (Maximum)
77 Degrees F
Flow Rate @ 3 ft of Head (Maximum)
16.5 gpm
Frequency
60 Hz
Motor Mounting Type
Horizontal
Media Temperature (Maximum)
150 Degrees F

Description

Little Giant's 5-MD-SC chemical pump is used for commercial, industrial, or residential applications to recirculate mildly corrosive fluids, including acids, alkalis, plating, brine, or salt solutions. It flaunts a thermally protected, open, fan-cooled, permanent split capacitor motor and delivers consistency for intermittent usage. Features & Benefits


•1/8 hp open FC PSC motor
•Glass-filled polypropylene magnet housing
•Glass-filled polypropylene volute
•1.1 specific gravity
•Nitrile O-ring
•Ceramic thrust washers and shaft
•Magnetically driven pumps for semi-corrosive chemicals and solutions. These pumps feature polypropylene, ceramic and Buna-N parts. Thermally protected open fan-cooled motor with sleeve bearings. 6 ft. power cord and 3-prong molded plug. The Little Giant MD-SC series features leak-proof, seal-less magnetic drives and are designed for in-line, non submersible use. Volute, magnet housing and impeller are glass-filled polypropylene for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.
