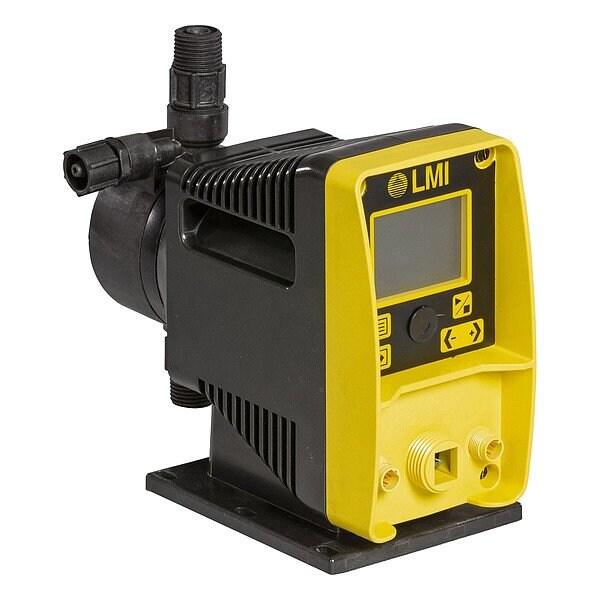

Chemical Metering Pump, 48 gpd, PVC Head
- Mfr # PD761-948SI
- Zoro # G016292465
product price:Â
$
1,794.99
/ea
Free Shipping & Returns
Key Features
Operating Pressure (Maximum)
50 psi
Overall Length
9.58 in
Overall Width
4.62 in
Frequency
50/60 Hz
Stroke Rate (Maximum)
160 stroke/min
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PD761-948SI
- Zoro #
- G016292465
- UPC #
- -
- Country of Origin
- United States
- Operating Pressure (Maximum)
- 50 psi
- Frequency
- 50/60 Hz
- Stroke Rate (Maximum)
- 160 stroke/min
- Fitting Material
- PVC
- Standards
- CE Certified, ETL, NSF 372, NSF 61
- Seal Material
- Polyprel
- Item
- Chemical Metering Pump
- Nameplate Voltage
- 115/230V AC
- Head Material
- PVC
- Pump Drive Type
- Solenoid
- Flow Rate (Maximum)
- 48 gpd
- Flow Rate (Minimum)
- 0.05 gpd
- Reproducibility
- +/-3.0%
- Control Programs
- Pulse, Remote Stop/Start, Tank Level Input
- Check Ball Material
- Ceramic
- Degassing Valve Included
- No
- Media Temperature (Maximum)
- 122 Degrees F
- Viscosity (Maximum)
- 50 cps
- Priming
- Self-Priming
- Turn Down Ratio
- 200:1
- Phase
- Single
- Housing Material
- Thermoplastic
- Diaphragm Material
- PTFE
Dimensions
- Overall Length
- 9.58 in
- Overall Width
- 4.62 in
- Overall Height
- 9.92 in
- Discharge Connection Size
- 3/8 in
- Intake Connection Size
- 3/8 in
- Wire Rope Length
- 9.58 in
- Length
- 9.58 in
Description
Chemical Metering Pump, Chemical Compatibility Not Applicable, Control Programs Pulse, Remote Stop/Start, Tank Level Input, Diaphragm Material PTFE, Discharge Connection Size 3/8 in, Discharge Connection Type Not Applicable, Fitting Material PVC, Flow Rate (Maximum) 48 gpd, Head Material PVC, Intake Connection Size 3/8 in, Intake Connection Type Not Applicable, Nameplate Voltage 115/230V AC, Operating Pressure (Maximum) 50 psi, Reproducibility +/-3.0 Percent, Seal Material Polyprel
