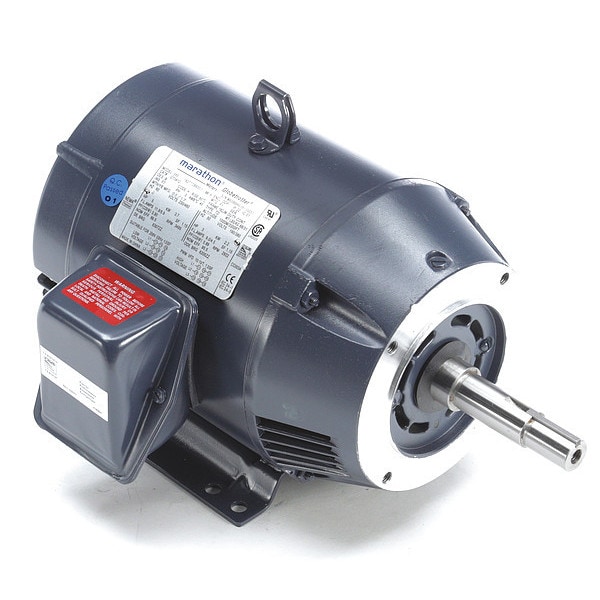

Close-Coupled Pump Motor, 3-Phase, 5 HP

  • Mfr # 182TTDBD6007
  • Zoro # G5737015
product price:
$
720.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
5 hp
RPM Range
3,001-3,600
Nameplate RPM
3,510
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182TTDBD6007
Zoro #
G5737015
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
14 5/8 in
Shaft Length
4 1/4 in
Length Less Shaft
10 3/8 in
Shaft Dia.
7/8 in
Bolt Circle Dia.
5 7/8 in
Height
9 13/16 in
Body Dia.
8.4 in
Bolt Circle Diameter
5 7/8 in
Frame Size
182JM
Body Diameter
8.4 in
Shaft Diameter
7/8 in
Wire Rope Length
14 5/8 in
Length
14 5/8 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
5 hp
RPM Range
3,001-3,600
Nameplate RPM
3,510
Voltage
230V AC, 460V AC
Frame
182JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Efficiency Group
NEMA Premium Efficient
Duty
Continuous
CC Number
CC003A
Nominal Efficiency
86.5 %
Motor Shaft Rotation
CW/CCW
Motor Application
Pump
Hz
60 Hz
Motor Shaft Design
JM Threaded
Motor Bearings
Ball
Frame Material
Steel
Motor Sub Application
Close-Coupled Pump
Full Load Amps
13.2/6.6 A
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Ins. Class
F
Motor Frame Material
Steel
Phase
Three
Motor Enclosure Design
Open Dripproof
Motor Thermal Protection
None
Max. Ambient Temp.
40 Degrees C
Standards
CE Mark, CSA Certified, UL Recognized
Inverter Rated
Inverter Rated
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
164 lb
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Motor Mounting Position
Horizontal
NEMA Design
B
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F1, F2
Shaft Type
Keyed
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
NEMA Design Class
B
Constant Torque Rating
2:1 Constant Torque
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Shaft Thread Type
JM
Application
Pump
Mounting Position
Horizontal
Full Load Current @ 60 Hz
13.2/6.6 A
Product Type
Pump Motor
Efficiency Rating
Premium Efficiency (IE3)
Insulation Class
F
Shaft Design
Threaded

Description

Close-Coupled Pump Motor, Body Dia. 8.4 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 182JM, Hz 60 Hz, Full Load Amps 13.2/6.6, Height 9 13/16 in, HP 5, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 10 3/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
