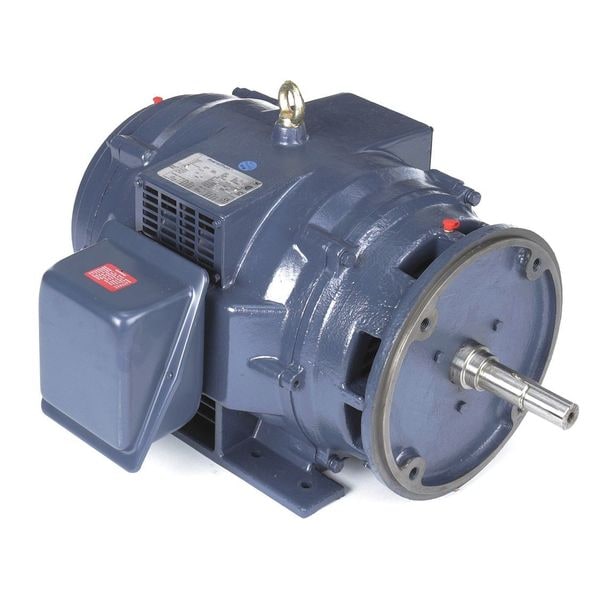

Close-Coupled Pump Motor, 40 HP
Mfr # 286TTDBD6007
Zoro # G6421311
product price: $3,327.99
/ea
Item requires special delivery charges. A $235.00 per item surcharge will be applied.
Key Features
Motor Design
3-Phase
HP
40
RPM Range
3,001-3,600
Nameplate RPM
3,560
Voltage
230/460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
286TTDBD6007
Zoro #
G6421311
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1 1/4 in
Overall Length
27 1/16 in
Shaft Length
5 1/4 in
Length Less Shaft
21 13/16 in
Height
15 in
Bolt Circle Dia.
11 in
Description
Close-Coupled Pump Motor, Bolt Circle Dia. 11 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 286JM, Hz 60 Hz, Full Load Amps 93.0/46.5, Height 15 in, HP 40, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 21 13/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
