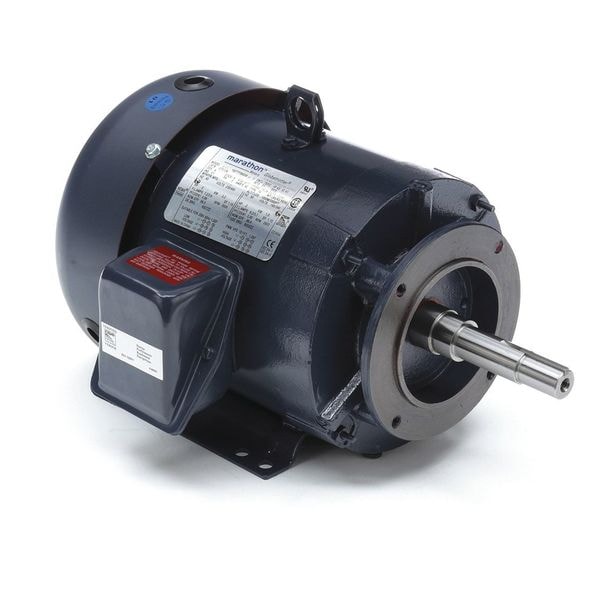

Close-Coupled Pump Motor, 8.0/4.0A, 3 HP

  • Mfr # 182TTFBD6006
  • Zoro # G6418557
product price:
$
834.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
3 hp
RPM Range
3,001-3,600
Nameplate RPM
3,530
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182TTFBD6006
Zoro #
G6418557
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 1/8 in
Shaft Dia.
1 1/4 in
Overall Length
17 3/8 in
Shaft Length
4 1/4 in
Height
9 13/16 in
Bolt Circle Dia.
5 7/8 in
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
1 1/4 in
Frame Size
182JM
Wire Rope Length
17 3/8 in
Length
17 3/8 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
3 hp
RPM Range
3,001-3,600
Nameplate RPM
3,530
Voltage
230V AC, 460V AC
Frame
182JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Bearings
Ball
Inverter Rated
Inverter Rated
Motor Thermal Protection
None
Full Load Amps
8.2/4.1
Nominal Efficiency
89.5 %
Duty
Continuous
Ins. Class
F
Hz
60 Hz
CC Number
CC003A
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Efficiency Group
NEMA Premium Efficient
Phase
Three
Standards
CE, CSA, DIVISION 2 T2B, EISA2007, IP 43, UL
Motor Frame Material
Steel
Motor Application
Pump
Motor Shaft Design
Keyed, Threaded
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Shaft Rotation
CW/CCW
Frame Material
Steel
Motor Sub Application
Close-Coupled Pump
Max. Ambient Temp.
40 Degrees C
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Weight
126 lb
Inverter Rating
10:1
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Motor Mounting Position
Horizontal
Conduit Box Position
F1, F2
Nameplate Service Factor @ 60 Hz
1.15
Mounting Position
Horizontal
Shaft Thread Type
JM
Frequency
60 Hz
Efficiency Rating
Premium Efficiency (IE3)
Number of Speeds
1
Full Load Current @ 60 Hz
8.2/4.1 A
Bearing Type
Ball
Application
Pump
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
Pump Motor
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed

Description

Close-Coupled Pump Motor, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 182JM, Hz 60 Hz, Full Load Amps 8.2/4.1, Height 9 13/16 in, HP 3, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1, Length Less Shaft 13 1/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled
