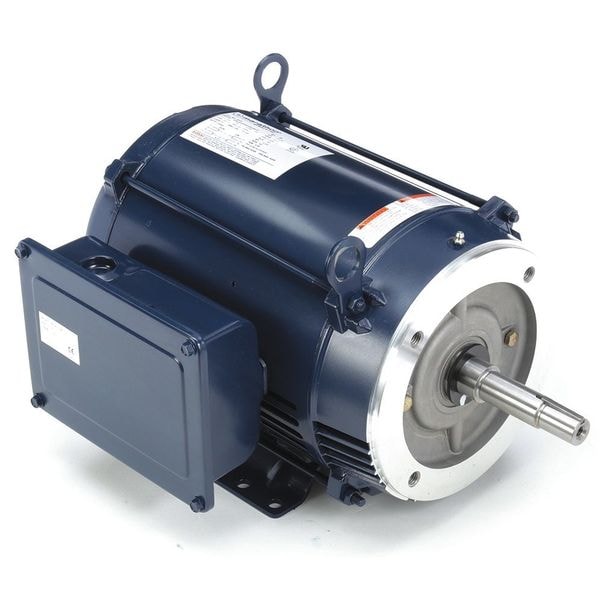

Close-Coupled Pump Motor7.5 HP, 3470 rpm

  • Mfr # 213TCDW7002
  • Zoro # G5751724
product price:
$
1,208.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
HP
7 1/2 hp
RPM Range
3,001-3,600
Nameplate RPM
3,470
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
213TCDW7002
Zoro #
G5751724
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
4 3/16 in
Shaft Dia.
7/8 in
Shaft Length
4 1/4 in
Overall Length
18 7/16 in
Body Dia.
9.5 in
Height
11 in
Bolt Circle Dia.
7 1/4 in
Body Diameter
9.5 in
Frame Size
213JM
Bolt Circle Diameter
7 1/4 in
Shaft Diameter
7/8 in
Wire Rope Length
18 7/16 in
Length
18 7/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Capacitor-Start
HP
7 1/2 hp
RPM Range
3,001-3,600
Nameplate RPM
3,470
Voltage
230V AC
Frame
213JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Sub Application
Close-Coupled Pump
Duty
Continuous
Ins. Class
B
Motor Application
Pump
Inverter Rated
Not Inverter Rated
Hz
60 Hz
Standards
CE Mark, CSA Certified, UL Recognized
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
JM Threaded
Max. Ambient Temp.
40 Degrees C
Motor Efficiency Group
Standard Efficient
Motor Bearings
Ball
Motor Frame Material
Steel
Full Load Amps
37 A
Motor Thermal Protection
None
Nominal Efficiency
78.5 %
Frame Material
Steel
Phase
Single
Motor Enclosure Design
Open Dripproof
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
NEMA Design
L
Motor Mounting Position
Horizontal
Conduit Box Location
Exterior
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Weight
106 lb
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F1
Shaft Type
JM Threaded
Bearing Type
Ball
Product Type
Pump Motor
Shaft Design
Threaded
Motor Enclosure Type
Open Drip Proof
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Shaft Thread Type
JM
Full Load Current @ 60 Hz
37.0 A
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
L
Efficiency Rating
Standard Efficiency (IE1)
Application
Pump
Number of Speeds
1
Insulation Class
B

Description

Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 213JM, Hz 60 Hz, Full Load Amps 37.0, Height 11 in, HP 7 1/2, Ins. Class B, Inverter Rated No, Length Less Shaft 4 3/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
