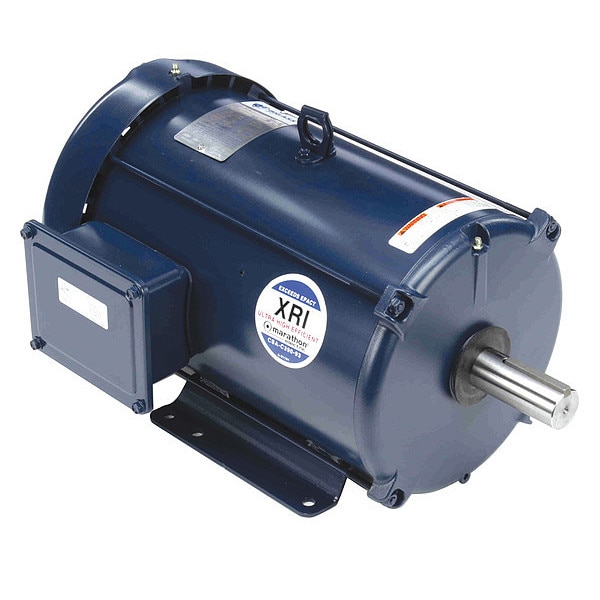

Marathon General Purpose Motor, Three Phase, 10 HP, 1760 rpm Nameplate RPM, 208-230/460V AC, 215T Frame 215TTFBD6027 - main

General Purpose Motor, Three Phase, 10 HP, 1760 rpm Nameplate RPM, 208-230/460V AC, 215T Frame

  • Mfr # 215TTFBD6027

  • Zoro # G6573423

product price:  $1,187.99
/ea
Additional $180.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
10
Nameplate RPM
1760 rpm
Frame
215T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215TTFBD6027
Zoro #
G6573423
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 3/8 in
Length Less Shaft
16 3/4 in
Manufacturers Warranty Length
1 yr
Overall Length
20 1/4 in
Shaft Length
3 1/2 in
Frame Size
215T
Shaft Diameter
1 3/8 in

Details

Item
General Purpose Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
10
Nameplate RPM
1760 rpm
Frame
215T
Motor Shaft Rotation
CW/CCW
Full Load Amps
27.3-27.0/12.5 A
Voltage
208-230/460V AC
Nominal Efficiency
91.7 %
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Standards
CE Listed, CSA (LR2025), UL (E49747)
Phase
Three
Ins. Class
F
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
RPM Group
1701-1800
Duty
Continuous
Motor Mounting Position
Horizontal
CC Number
CC003A
Motor Service Factor
1.15
Inverter Rated
No
Motor Shaft Design
Keyed
Motor Application
General Purpose
Motor Thermal Protection
None
Motor Bearings
Ball
Hz
60/50 Hz
Motor Mounting Type
Rigid Base
RPM Range
1701-1800
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
RPM @ 50Hz
1760 rpm
Service Factor @ 50Hz
1.15
Usable @ 200V
Not Usable at 200V
Voltage @ 50Hz
208-230/460
HP @ 50Hz
10 hp
Full Load Amps @ 50Hz
14.0-26.4/13.2 A
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Full Load Current @ 60 Hz
27.3-27.0/12.5 A
Inverter Rating
Not Inverter Rated
Full Load Current @ 50 Hz
14.0-26.4/13.2 A
Frequency
60/50 Hz
Efficiency Rating
NEMA Premium Efficiency
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Number of Speeds
1
Nameplate Horsepower @ 50 Hz
10 hp
Insulation Class
F
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Frame Material
Steel
Bearing Type
Ball
Nameplate Service Factor @ 50 Hz
1.15
Manufacturers Warranty
1 yr
Nameplate RPM @ 50 Hz
2,905/2,915/2,920/2,835/2,860/2,870 RPM

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1760 rpm, Frame 215T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 27.3-27.0/12.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800
