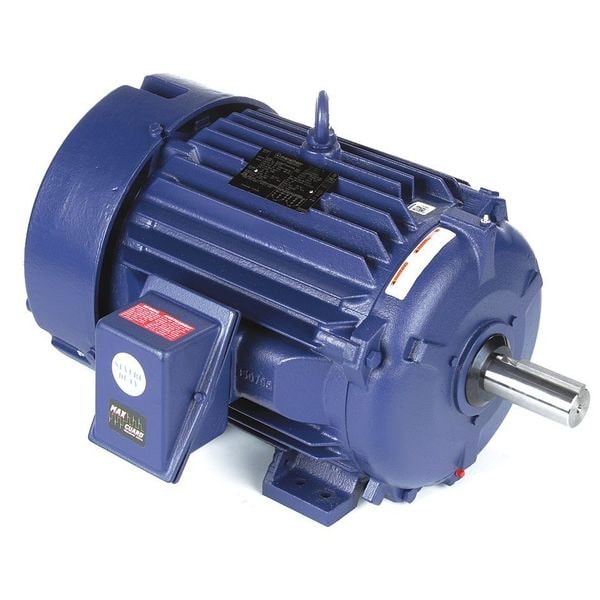

Cooling Tower Motor, Three Phase, 30 HP, 1,773 Nameplate RPM, 230/460V AC, 286T Frame

  • Mfr # 286TTFCD16572

  • Zoro # G9827587

product price:
$
4,006.99
/ea
Additional $290.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
30
Nameplate RPM
1,773
Frame
286T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
286TTFCD16572
Zoro #
G9827587
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 7/8 in
Overall Length
27 3/4 in
Length Less Shaft
22 7/8 in
Shaft Length
4 7/8 in
Shaft Diameter
1 7/8 in
Frame Size
286T
Wire Rope Length
27 3/4 in
Length
27 3/4 in

Details

Item
Cooling Tower Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
30
Nameplate RPM
1,773
Frame
286T
Motor Shaft Rotation
CW/CCW
Full Load Amps
73/36.5 A
Voltage
230/460V AC
Nominal Efficiency
95.4 %
Conduit Box Position
F1
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Standards
CSA (LR2025), IP55, UL (E49747)
Phase
Three
Ambient Temperature
40 Degrees C
Motor Frame Material
Cast Iron
CC Number
CC003A
Hz
60/50 Hz
Finish
Epoxy-Coated
Motor Bearings
Ball
Frame Material
Cast Iron
Motor Shaft Design
Keyed
Duty
Continuous
RPM Range
1,701-1,800
Warranty
1 yr
Ins. Class
F
Motor Efficiency Group
NEMA Premium Efficient
Motor Service Factor
1.15
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Application
Cooling Tower
Motor Thermal Protection
None
Motor Mounting Type
Rigid Base
Green Certification or Other Recognition
NEMA Premium(R) Rated
Full Load Amps @ 50Hz
73/36.5 A
Usable @ 208V
Not Usable at 208V
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Full Load Current @ 50 Hz
73/36.5 A
Full Load Current @ 60 Hz
73.0/36.5 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Frequency
60/50 Hz
Application
Cooling Tower
Product Type
Cooling Tower Motor
Bearing Type
Ball
Shaft Design
Keyed
Mounting Position
Horizontal/Vertical Shaft Up
Nameplate Service Factor @ 60 Hz
1.15

Description

Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 30 hp HP, 1,773 RPM Nameplate RPM, 286T Frame, CW/CCW Motor Shaft Rotation, 230/460V AC Voltage, 73.0/36.5 A Full Load Amps, Three Phase, 60/50 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position Horizontal/Vertical Shaft Up, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 7/8 in, Shaft Length 4 7/8 in
