Shop MARATHON

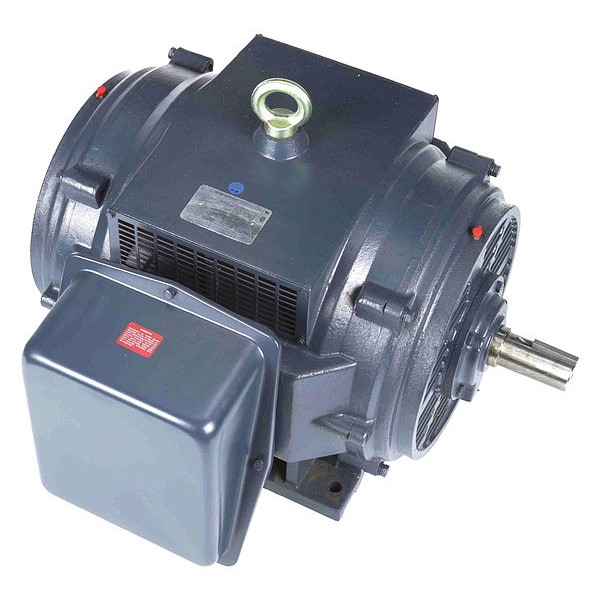

Three-Phase General Purpose Motor, 100 HP, 404TS Frame, 230/460V AC Voltage, 1788 rpm Nameplate RPM

  • Mfr # 404TSTDCD6060

  • Zoro # G4756847

product price:  $7,293.99
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
100
Nameplate RPM
1788 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
228.0/114.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
404TSTDCD6060
Zoro #
G4756847
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
29 5/8 in
Overall Length
33 7/8 in
Shaft Dia.
2 1/8 in
Shaft Length
4 1/4 in
Manufacturers Warranty Length
1 yr
Frame Size
404TS
Shaft Diameter
2 1/8 in

Details

Item
General Purpose Motor
HP
100
Nameplate RPM
1788 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
228.0/114.0 A
Frame
404TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.4 %
Standards
CSA Certified, UL Recognized
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
1,308 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Inverter Rating
Inverter Rated
Bearing Type
Ball
Number of Speeds
1
Application
General Purpose
Product Type
General Purpose Motor
Nameplate RPM @ 50 Hz
1,760 RPM
Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
B
Frame Material
Cast Iron
Shaft Design
Keyed
Insulation Class
F
Motor Enclosure Type
Open Drip Proof
Nameplate Voltage @ 50 Hz
190/380V AC
Mounting Position
Horizontal
Efficiency Rating
NEMA Premium Efficiency
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
228.0/114.0 A
Frequency
60 Hz

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 100 HP, Nameplate RPM 1788 rpm, Frame 404TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 228.0/114.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800
