Shop MARATHON

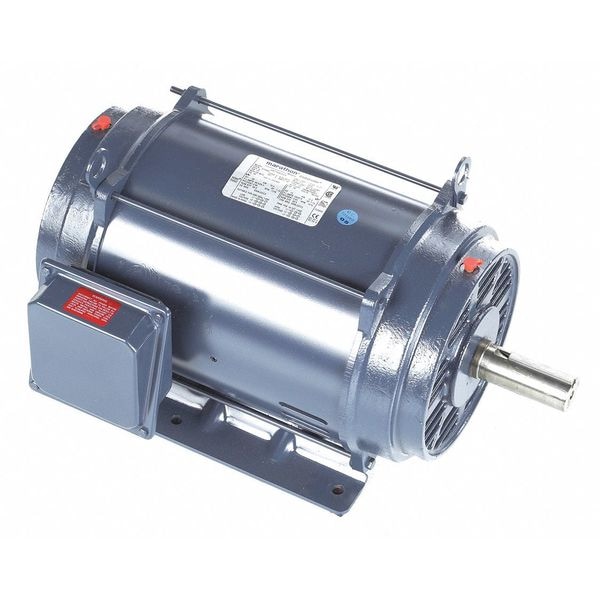

Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 256TTDBD6026
  • Zoro # G4818760
product price:
$
1,724.99
/ea
Additional $105.00 delivery surcharge applies per item.
See details

Key Features

HP
20
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
48.5/24.3 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
256TTDBD6026
Zoro #
G4818760
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
20 1/4 in
Overall Length
24 1/4 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Manufacturers Warranty Length
1 yr
Frame Size
256T
Shaft Diameter
1 5/8 in
Wire Rope Length
24 1/4 in
Length
24 1/4 in

Details

Item
General Purpose Motor
HP
20
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
48.5/24.3 A
Frame
256T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
93 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
314 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Nameplate Voltage @ 50 Hz
190/380V AC
Product Type
General Purpose Motor
Manufacturers Warranty
1 yr
Motor Enclosure Type
Open Drip Proof
Application
General Purpose
Full Load Current @ 60 Hz
48.5/24.3 A
NEMA Design Class
B
Efficiency Rating
NEMA Premium Efficiency
Inverter Rating
Not Inverter Rated
Insulation Class
F
Frame Material
Steel
Nameplate RPM @ 50 Hz
1,770 RPM
Mounting Position
Horizontal
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 256T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 48.5/24.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
