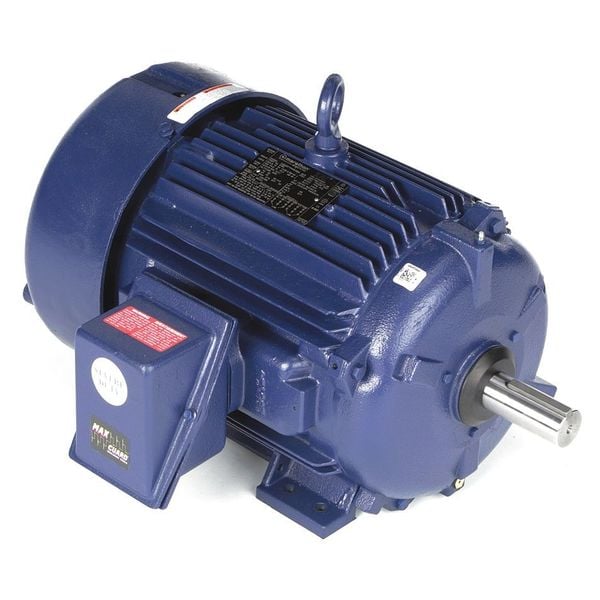

Three-Phase Severe Duty Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1,768 Nameplate RPM

  • Mfr # 256TTFCD6529

  • Zoro # G9943787

product price:  $2,402.99
/ea
Additional $215.00 delivery surcharge applies per item.
See details

Key Features

HP
20
Nameplate RPM
1,768
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
48.5/24.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
256TTFCD6529
Zoro #
G9943787
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
21 7/8 in
Overall Length
25 7/8 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Lead Length
9" to 8"
Shaft Diameter
1 5/8 in
Frame Size
256T
Wire Rope Length
25 7/8 in

Details

Item
Severe Duty Motor
HP
20
Nameplate RPM
1,768
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
48.5/24.2 A
Frame
256T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
H
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
94.1 %
Standards
CE, CSA, UL Listed
CC Number
CC003A
Includes
Max Guard Insulation
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
355 lb
Usable @ 200V
Not Usable at 200V
Inverter Rated
Yes
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
NEMA Design
B
Temp. Code
T2B
Hazardous Location Class
1 C,D / 2 F,G
Efficiency Rating
NEMA Premium Efficiency
Product Type
Severe Duty Motor
Shaft Design
Keyed
Number of Speeds
1
Full Load Current @ 60 Hz
48.5/24.2 A
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B
Insulation Class
H
Bearing Type
Ball
Application
General Purpose
Inverter Rating
Inverter Rated
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate RPM @ 50 Hz
1,785/1,475 RPM
Mounting Position
Horizontal
Frequency
60 Hz
Nameplate Voltage @ 50 Hz
380V AC, 460V AC

Description

Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1,768, Frame 256T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 48.5/24.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
