  5. Engine Driven Welder, Big Blue(R) 600 Pro Deluxe Series, Electric Start, 48.9 hp, Diesel

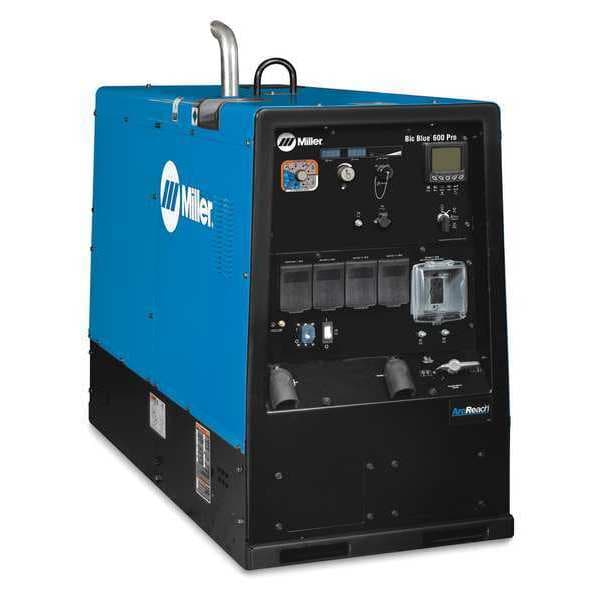

Miller Electric Engine Driven Welder, Big Blue(R) 600 Pro Deluxe Series, Electric Start, 48.9 hp, Diesel 907737001 - main

Engine Driven Welder, Big Blue(R) 600 Pro Deluxe Series, Electric Start, 48.9 hp, Diesel

  • Mfr # 907737001

  • Zoro # G1614109

product price:  $56,696.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Series
Big Blue 600 Pro
Start Type
Electric
Rated Output CC/DC
500A @ 100%, 550A @ 60%, 600A @ 40%
Amperage Range
20 to 600
Continuous Auxiliary Power
20,000 W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
907737001
Zoro #
G1614109
UPC #
715959650373
Country of Origin
United States

Dimensions

Depth
69 1/2 in
Height
46 in
Width
28 1/2 in
Overall Depth
69.5 in
Overall Width
28.5 in
Overall Height
46 in

Details

Item
Engine-Driven Welder
Series
Big Blue 600 Pro
Start Type
Electric
Rated Output CC/DC
500A @ 100%, 550A @ 60%, 600A @ 40%
Amperage Range
20 to 600
Continuous Auxiliary Power
20,000 W
Peak Auxiliary Power
27,000 W
Engine Brand
Kubota
HP
48.9 hp
Fuel Type
Diesel
Phase
Three-Phase
Includes
ArcReach Remote Control Technology
Standards
CSA Certified
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Application
Construction, Fabrication, Infrastructure, Maintenance/Repair
Horsepower
49 hp
Open Circuit Voltage
92 V DC
Generator Outlets
20 A 120V GFCI 5-20R (4), 20 A 240V L6-30R (2), 50 A 120/240V 14-50R, 50 A 240V 15-50R
Stick Welding Maximum Output Current
600 A
Weight
1,750 lb
Welding Mode
CC/CV
Fuel Tank Capacity
25 gal
TIG Welding Minimum Output Current
20 A
TIG Welding Maximum Output Current
600 A
Stick Welding Minimum Output Current
20 A
Circuit Breaker
Yes
Engine Model
Kubota V2403
Sound Level
65.9 dB (Idle), 74.3 dB (Weld)
Oil Capacity
10 qt
TIG Welding Output @ Duty Cycle
500 A @ 40 V, 100%, 575 A @ 43 V, 100%, 600 A @ 44 V, 60%
Coolant Tank Capacity
9 qt
MIG Welding Maximum Output Current
600 A
MIG Welding Output @ Duty Cycle
500 A @ 40 V, 100%, 575 A @ 43 V, 100%, 600 A @ 44 V, 60%
For Material Type
Stainless Steel, Steel
Enhanced Process
Pulsed MIG (GMAW-P), RMD
Generator Fuel Type
Diesel
Polarity
DC
Stick Welding Output @ Duty Cycle
500 A @ 40 V, 100%, 575 A @ 43 V, 100%, 600 A @ 44 V, 60%
Model
907737001

Description

Engine-Driven Welder, For Material Type Stainless Steel, Steel, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 600 A, MIG Welding Output @ Duty Cycle 500 A @ 40 V, 100 Percent, 575 A @ 43 V, 100 Percent, 600 A @ 44 V, 60 Percent, Phase Three-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 600 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 500 A @ 40 V, 100 Percent, 575 A @ 43 V, 100 Percent, 600 A @ 44 V, 60 Percent
