Shop MILLER ELECTRIC

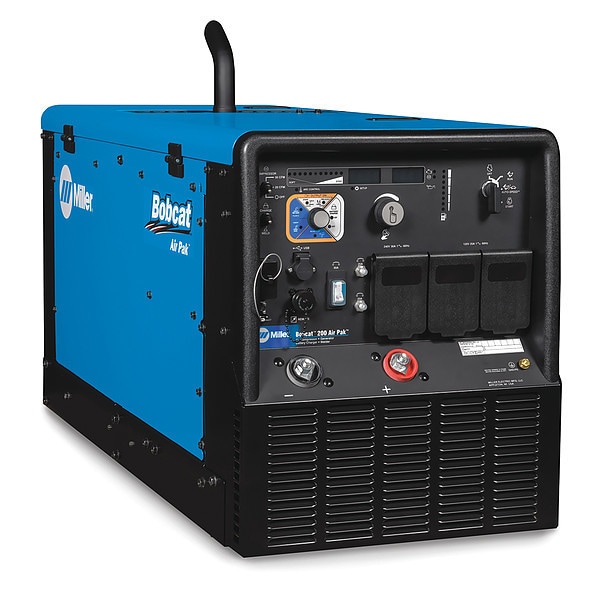

Engine-Driven Welder, Bobcat 200 Air Pak Series, Electric Start, 23 hp, Gas, 8,000 W Peak

  • Mfr # 907771
  • Zoro # G3944760
product price:
$
18,331.99
/ea
Additional $215.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Series
Bobcat 200 Air Pak
Start Type
Electric
Rated Output CC/DC
120A @ 25V, 100% / 140A @ 26V, 60% / 210A @ 28V, 30%, 120A @ 20V, 100% / 140A @ 21V, 60% / 210A @ 25V, 30%
Amperage Range
30 to 210
Continuous Auxiliary Power
6,500 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907771
Zoro #
G3944760
UPC #
715959674003
Country of Origin
United States

Dimensions

Overall Width
20 in
Height
29 25/32 in
Width
20 in
Depth
44 39/64 in
Overall Height
29.78 in
Overall Depth
44.61 in
For Stainless Steel Thickness - Minimum
26 ga
For Steel Thickness - Maximum
46,097 in
For Steel Thickness - Minimum
24 ga

Details

Item
Engine-Driven Welder
Series
Bobcat 200 Air Pak
Start Type
Electric
Rated Output CC/DC
120A @ 25V, 100% / 140A @ 26V, 60% / 210A @ 28V, 30%, 120A @ 20V, 100% / 140A @ 21V, 60% / 210A @ 25V, 30%
Amperage Range
30 to 210
Continuous Auxiliary Power
6,500 W
Peak Auxiliary Power
8,000 W
Engine Brand
Kohler
HP
23 hp
Fuel Type
Gas
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Standards
CSA Certified
Application
Farm, Maintenance, Mechanical Contractor, Repair, Work
Phase
Single
For Material Type
Aluminum
Oil Capacity
2 qt
Horsepower
23 hp
TIG Welding Minimum Output Current
30 A
TIG Welding Maximum Output Current
210 A
MIG Welding Maximum Output Current
210 A
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
Remote Connection Type
10-Pin (Miller)
MIG Welding Output @ Duty Cycle
120 A @ 20 V, 100%, 120 A @ 21 V, 210 A @ 25 V, 20%, 60%
Stick Welding Maximum Output Current
210 A
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Maximum Pressure - Air Compressor
175 psig
Stick Welding Minimum Output Current
30 A
Polarity
DC
Color
Blue
Sound Level
66 dB (Idle), 73 dB (Weld)
TIG Welding Output @ Duty Cycle
100%, 120 A @ 25 V, 140 A @ 26 V, 20%, 210 A @ 28 V, 60%
Generator Fuel Type
Gasoline
MIG Welding Minimum Output Current
30 A
Stick Welding Output @ Duty Cycle
100%, 120 A @ 25 V, 140 A @ 26 V, 20%, 210 A @ 28 V, 60%
Air Compressor Delivery
30 CFM
Circuit Breaker
Yes
Weight
514 lb
Fuel Tank Capacity
7 gal
Welding Mode
CC/CV
Engine Model
Kohler ECH730
Model
907771
Amperage TIG - Minimum
30 A
Amperage Stick - Minimum
30 A
Rated Output @ Duty Cycle (TIG)
100%, 120 A @ 25 V, 140 A @ 26 V, 20%, 210 A @ 28 V, 60%
Includes
ArcReach Remote Control Technology
Rated Output @ Duty Cycle (MIG)
120 A @ 20 V, 100%, 120 A @ 21 V, 210 A @ 25 V, 20%, 60%
Amperage MIG - Minimum
30 A
Amperage TIG - Maximum
210 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Stick - Maximum
210 A
Rated Output @ Duty Cycle (Stick)
100%, 120 A @ 25 V, 140 A @ 26 V, 20%, 210 A @ 28 V, 60%
Welding Power Source Type
CC/CV
Air Compressor Maximum Pressure
175 psig
Amperage MIG - Maximum
210 A

Description

Engine-Driven Welder, Color Blue, For Material Type Aluminum, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 210 A, MIG Welding Minimum Output Current 30 A, MIG Welding Output @ Duty Cycle 120 A @ 20 V, 100 Percent, 120 A @ 21 V, 210 A @ 25 V, 20 Percent, 60 Percent, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 210 A, Stick Welding Minimum Output Current 30 A
