Shop MILLER ELECTRIC

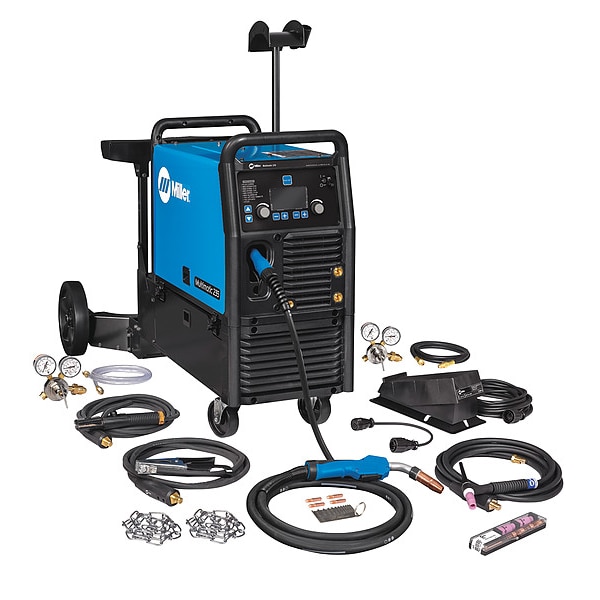

MIG Welder, Multimatic 235, Single-Phase, 208V AC, 220/230/240V AC, 20 to 235A DC, 60 %

  • Mfr # 951847

  • Zoro # G2582372

product price:  $6,443.99
/ea
Additional $115.00 delivery surcharge applies per item.
See details

Key Features

Series
Multimatic 235
Input Voltage
208/220/230/240V AC
Welded Material
Aluminum, Stainless Steel, Steel
Mild Steel - Material Thickness
16 ga To 3/8 in, 24 ga To 1/4 in, 24 ga To 3/8 in
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
951847
Zoro #
G2582372
UPC #
715959684217
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
16 ga To 3/8 in, 24 ga To 1/4 in, 24 ga To 3/8 in
Overall Height
32 in
Stainless Steel - Material Thickness
16 ga To 3/8 in, 24 ga To 1/4 in, 24 ga To 3/8 in
Aluminum - Material Thickness
18 ga. to 3/8 in
Overall Depth
45 in
Overall Width
13.75 in
Wire Size
0.030 in to 0.035 in
Maximum Wire Diameter
0.035 in (Flux-Cored), 0.035 in (Solid)
For Minimum Material Thickness
24 ga (Steel)
Power Cord Length
7 ft
Minimum Wire Diameter
0.030 in (Flux-Cored), 0.030 in (Solid Wire)
For Maximum Material Thickness
3/8 in (Steel)
Wire Diameter Aluminum - Maximum
0.4 in
Wire Diameter Aluminum - Minimum
0.35 in
Wire Diameter Solid - Minimum
0.03 in
For Steel Thickness - Maximum
3/8 in
For Aluminum Thickness - Minimum
18 ga
Wire Diameter Flux-Cored - Minimum
0.03 in
For Stainless Steel Thickness - Minimum
18 ga
Wire Diameter Flux-Cored - Maximum
0.035 in
For Steel Thickness - Minimum
24 ga
For Stainless Steel Thickness - Maximum
3/8 in
For Aluminum Thickness - Maximum
3/8 in
Wire Diameter Solid - Maximum
0.035 in

Details

Item
MIG Welder
Series
Multimatic 235
Input Voltage
208/220/230/240V AC
Welded Material
Aluminum, Stainless Steel, Steel
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Hz
50/60
Portability
Wheeled Mounted
Standards
CSA Certified
Output Range
20 to 235A DC
Duty Cycle
60 %
Includes
(2) Flow Gauge Regulators & Gas Hoses for Argon or Argon/Carbon Dioxide Mix, 0.03/0.035 in Reversible Drive Rolls, 10 ft Work Cable & Clamp with 50 mm Dinse-Style Connector, 15 ft 250 A MDX-250 MIG Gun with AccuLock MDX Consumables for 0.03/0.035 in Wire, 25 ft Weldcraft A-150 TIG Torch, AK3C TIG Consumables Kit, Contact Tips, Electrode Holder with 10 ft Cable & 50 mm Dinse-Style Connector, EZ-Latch Dual Cylinder Running Gear with Elevated Gun & Cable Rack, RFCS-14 HD Foot Control with 10-pin to 14-pin Adapter Cord
Rated Output
150A @ 60%, 170A @ 60%, 180A @ 60%
Input Amps
20/20.2/17
Features
Auto-Set(TM) Elite, Auto-Gun Detect(TM), EZ-Latch(TM), Dual Cylinder
Application
Fabrication, Manufacturing, MRO and Construction Fabrication and Education Segment
Stick Welding Minimum Output Current
30 A
Open Circuit Voltage
54 V DC
Max. Input Current
20.2 A @ 240V AC (Single-Phase)
Minimum Wire Feed Speed
60 in/min
MIG Welding Minimum Output Current
30 A
Color
Blue
TIG Welding Maximum Output Current
210 A
TIG Arc Start Feature
Lift Arc Start
Maximum Wire Feed Speed
600 in/min
TIG Welding Output @ Duty Cycle
180 A @ 17.2 V, 60%
Amperage Range
20 A to 235 A
Enhanced Process
Pulsed TIG (GTAW-P)
Stick Welding Maximum Output Current
200 A
TIG Welding Minimum Output Current
20 A
For Material Type
Aluminum, Stainless Steel, Steel
Welding Mode
CC/CV
Remote Connection Type
14-Pin (Miller)
MIG Welding Output @ Duty Cycle
170 A @ 22.5 V, 60%
Power Cord Included
Yes
Pulse Frequency
0 to 150 pulses/second
Stick Welding Output @ Duty Cycle
150 A @ 26 V, 60%
MIG Welding Maximum Output Current
235 A
Input Frequency
50/60 Hz
Weight
127 lb
Polarity
DC
Plug Type
6-50P
For Wire Type
Aluminum, Flux-Cored, Solid
Model
951847
Amperage TIG - Minimum
20 A
Welding Power Source Type
CC/CV
Amperage MIG - Maximum
235 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (TIG)
180 A @ 17.2 V, 60%
Amperage TIG - Maximum
210 A
Amperage MIG - Minimum
30 A
Amperage Stick - Minimum
30 A
TIG Arc Control Feature
Arc Control
Amperage Stick - Maximum
200 A
Rated Output @ Duty Cycle (MIG)
170 A @ 22.5 V, 60%
Maximum Input Current
20.2 A @ 240V AC (Single-Phase)
Rated Output @ Duty Cycle (Stick)
150 A @ 26 V, 60%

Description

Multiprocess Welder, Series Multimatic 235, Input Voltage 208/220/230/240V AC, Phase Single, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 200 A, TIG Welding Maximum Output Current 210 A, MIG Welding Maximum Output Current 235 A, For Wire Type Aluminum, Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Flux-Cored), 0.035 in (Solid)
