Shop MILLER ELECTRIC

Welder, MILLERELECTRIC, Multimatic215PRO

  • Mfr # 951000213

  • Zoro # G022731989

product price:
$
4,861.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Phase
Single
For Steel Thickness - Minimum
24 ga
Wire Diameter Flux-Cored - Maximum
0.035 in
Wire Diameter Solid - Maximum
0.035 in
Wire Diameter Aluminum - Minimum
0.35 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
951000213
Zoro #
G022731989
UPC #
715959722131
Country of Origin
United States

Dimensions

For Steel Thickness - Minimum
24 ga
Wire Diameter Flux-Cored - Maximum
0.035 in
Wire Diameter Solid - Maximum
0.035 in
Wire Diameter Aluminum - Minimum
0.35 in
For Aluminum Thickness - Maximum
3/8 in
For Aluminum Thickness - Minimum
18 ga
Wire Diameter Solid - Minimum
0.03 in
Overall Height
14.63 in
For Steel Thickness - Maximum
3/8 in
Overall Width
9.75 in
For Stainless Steel Thickness - Minimum
26 ga
For Stainless Steel Thickness - Maximum
3/8 in
Wire Diameter Flux-Cored - Minimum
0.03 in
Overall Depth
20 in
Wire Diameter Aluminum - Maximum
0.4 in
Power Cord Length
6 1/2 ft

Details

Phase
Single
Power Cord Included
Yes
Standards
cCSAus
Amperage Stick - Minimum
30 A
Application
Automotive Welding, Car Restoration, Fabrication, Garage/Shop, Mobile Fabrication and MRO, Welding Education and Training, Welding Projects
Includes

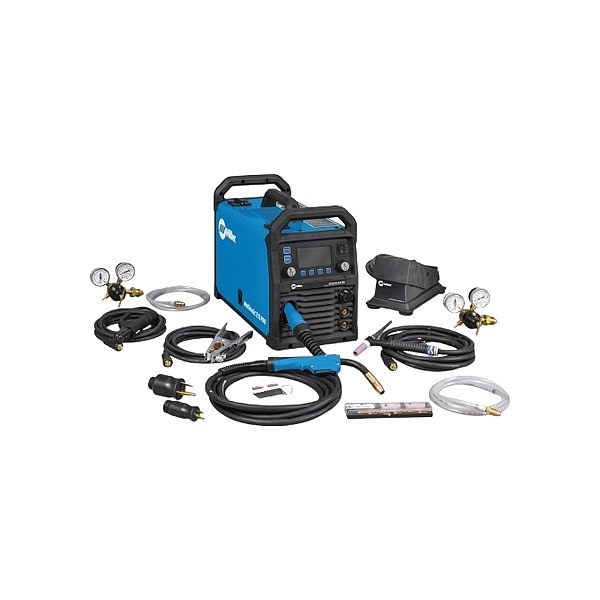

Material Thickness Gauge #229895, 15 ft (4.6 m) MDX(TM)-100 MIG Gun, 15 ft (4.6 m) Work Cable with Clamp, 15 ft Cable with Electrode Holder and Dinse-Style Connector, 6.5 ft (2 m) Power Cord and MVP(TM) Adapter Plugs, Argon and AR/CO2 Mix Regulator/Flow Gauge with Hose, Hook-and-Loop Cord Wraps, Multimatic(R) 215 PRO, Quick Select(TM) Drive Roll, TIG Kit, Two Contact Tips
Amperage Stick - Maximum
200 A
Rated Output @ Duty Cycle (TIG)
140 A @ 15.6 VDC, 40%, 190 A @ 17.6 VDC, 20%
Open Circuit Voltage
57 V DC
Polarity
DC
Rated Output @ Duty Cycle (MIG)
110 A @ 19.5 VDC, 60%, 160 A @ 22 VDC, 60%, 215 A @ 24.8 VDC, 30%
Input Voltage
120/240V AC
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
For Wire Type
Flux-Cored, Solid
Features
Auto Spool Gun Detect(TM), Auto-Set(TM) Elite, Multi-Voltage Plug (MVP), Multiprocess Capability, Quick Select(TM) Drive Roll, Upgradeable Software, Weld Longer
Rated Output @ Duty Cycle (Stick)
190 A @ 27.6 VDC, 20%, 95 A @ 23.8 VDC, 40%
Input Frequency
50/60 Hz
Remote Connection Type
14-Pin (Miller)
Weight
35 lb
Amperage MIG - Minimum
30 A
Welding Power Source Type
CC/CV
Amperage TIG - Minimum
20 A
Plug Type
5-15P, 6-50P
Item
Welder
Amperage TIG - Maximum
210 A
Amperage MIG - Maximum
230 A
Minimum Wire Feed Speed
60 in/min
For Material Type
Aluminum, Stainless Steel, Steel
Maximum Wire Feed Speed
600 in/min

Description

Welder, Input Voltage 120/240V AC, Phase Single, Polarity DC, Input Frequency 50/60 Hz, For Wire Type Flux-Cored, Solid, Maximum Wire Feed Speed 600 in/min, Remote Connection Type 14-Pin (Miller)

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
