- Item

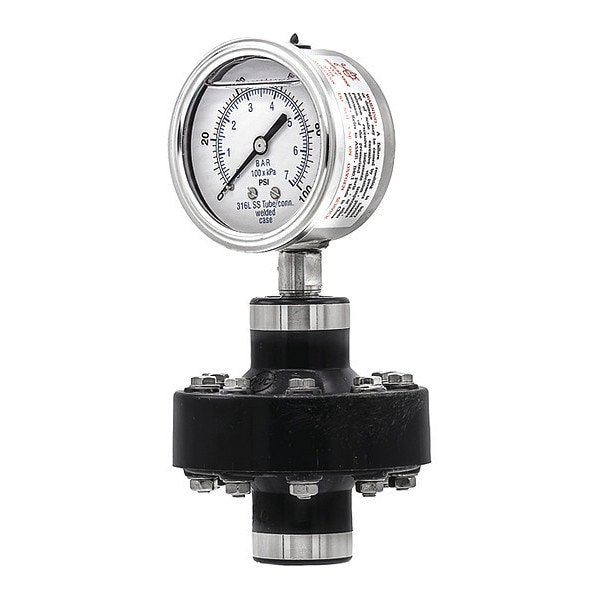

- Pressure Gauge with Diaphragm Seal
- Accuracy
- +/-2-1-2%
- Process Connection Location
- Bottom
- Process Connection Type
- NPT
- Application
- Added Durability
- Gauge Case Material
- Stainless Steel
- Series
- 301L; CPTP
- Lens Material
- Polycarbonate
- Primary Pressure Range
- 0 to 100
- Primary Scale Units
- psi
- IP/NEMA Rating
- IP65
- Liquid-Filled Case
- No
- Hazardous Location Rating
- Not Rated
- Panel-Mountable
- No
- Blowout Safety Back
- No
- Gauge Filled With
- Glycerin
- Calibration Certificate Included
- No
- Gauge Primary Range Numbered Graduations
- 20
- Case Material
- Stainless Steel
- Gauge Special Options
- Diaphragm
- Gauge Secondary Range Values
- 0 to 7
- Case Color
- Gray
- Graduations
- 20 psi
- Gauge Primary Range Smallest Graduation
- 20
- Socket Material
- Stainless Steel
- Standards
- ASME B40.100
- Connection Type
- FNPT
- Vibration Resistance
- Field-Fillable
- Field Fillable
- Yes
- Movement Type
- Anti-Vibration
- Secondary Scale Units
- bar
- Pressure Range Type
- Pressure
- Bezel Mounting Type
- Fixed
- Seal Lower Housing Material
- PVC
- Adjustable Pointer
- No
- Seal Diaphragm Material
- PTFE Coated 316 Stainless Steel
- Scale Type
- Dual
- Ambient Operating Temperature Range
- -30 Degrees to 180 Degrees F
- Seal Compatible Process Media
- 316 Stainless Steel
- Cleaned for Oxygen Service
- No
- Dry Dampening Feature
- Anti-Vibration Movement
- Pressure Gauge Type
- Process Pressure Gauge with Diaphragm Seal
- Diaphragm Seal Type
- Threaded
- Clog Resistant
- No
- Includes Vent Plug
- No
- Process Connection Gender
- Male
- Primary Scale Numeric Increments
- 20
- Sensor Material
- 316 Stainless Steel
- Compatible Process Media
- Media Compatible with PTFE
- Secondary Pressure Range
- 0 to 7
- Gauge Case Liquid
- None
- Bezel Material
- Stainless Steel
- Dial Color
- White
- Freeze Resistant Movement
- No
- Includes Calibration Certificate
- No
- Includes Mounting Hardware
- No
- Pointer Color
- Black
- Accuracy Scale
- Mid-Scale
- Process Temperature Range
- -40 Degrees to 300 Degrees F
- Case Construction
- Welded
- Primary Scale Minor Graduations
- 2
- Seal Fill Liquid
- Glycerin
- Case Finish
- None
- Removable Bezel
- No
- Pointer Material
- Aluminum
- Accuracy Grade
- ASME B40.100 Grade A
- Diaphragm Seal Material
- PTFE Coated 316 Stainless Steel
- Operating Temperature Range
- -30 Degrees to 180 Degrees F
- Primary Scale Vacuum Measurement - Maximum
- 100 psi
- Process Media Temperature - Maximum
- 300 Degrees F
- Case Liquid
- None
- Secondary Scale Vacuum Measurement - Maximum
- 7 bar
- IP Rating
- IP65
- Secondary Scale Pressure Measurement - Maximum
- 7 bar
- Primary Scale Pressure Measurement - Minimum
- 0 psi
- Operating Temperature - Minimum
- -30 Degrees F
- Primary Scale Pressure Measurement - Maximum
- 100 psi
- Operating Temperature - Maximum
- 180 Degrees F
- Primary Scale Vacuum Measurement - Minimum
- 0 psi
- Secondary Scale Vacuum Measurement - Minimum
- 0 bar
- NEMA Enclosure Rating
- No Enclosure
- Process Media Temperature - Minimum
- -40 Degrees F
- Secondary Scale Pressure Measurement - Minimum
- 0 bar
- Includes Acid Leak Detection
- No Acid Leak Detection Included
