Raco

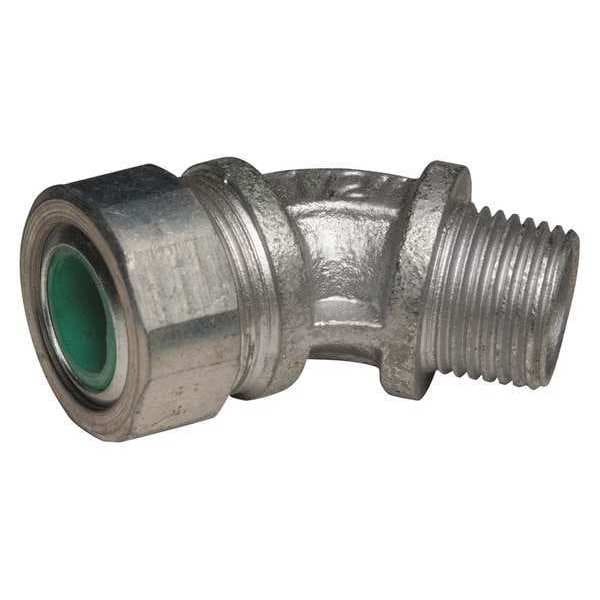

Cord Connector, Silver, 2-9/16" L, Iron

product price: $9.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style - Connector 45 Degrees
  • Hub Size 1/2 in MNPT
  • Cord Dia. Range 0.45 in to 0.56 in
  • Material Iron
  • Color Silver
See all product information

Product Information

Dimensions

Hub Size 1/2 in MNPT
Cord Dia. Range 0.45 in to 0.56 in
Length - Box to End of Connector 2 9/16 in
Length - External Strain Relief No External Strain Relief
Conduit Size 1/2"
Length 2-9/16"
Compatible Conduit Trade Size 1/2 in
Thread Size 0.5 in
Each - Width 1.250 in
Height 1.25 in
Trade Size 0.5 in
Width 1.250 in
Size 2.56 in x 1.25 in x 1.25 in
Dimensions 2.56 in x 1.25 in x 1.25 in

Details

Item Enhanced Rating Cord Connector
Item - Cord Connector Enhanced Rating Cord Connector
Style - Connector 45 Degrees
Material Iron
Color Silver
Box Connection 1/2 in MNPT
Material - Cord Connector Malleable Iron
Material - External Strain Relief No External Strain Relief
Gland Color Code Green
Number of Cords 1
Standards cULus
Connector Type Straight
Body Color - Cord Connector Silver
Insulated No
Strain Relief Type No External Strain Relief
Hazardous Location Rating Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Grommet Color Code Green
For Minimum Cable OD 0.45 in
Connection Orientation 45 Degrees
Body Color Silver
Liquid Tight Yes
Thread Type NPT Thread
Body Material Iron
NEMA Rating NEMA 4
Grommet Material Neoprene
Collar Material Iron
For Maximum Cable OD 0.56 in
Thread-Type NPT Thread
Cable Range .45 - .56 in
Certified Listed cULus Listed
Standard cULus Listed
Application For use in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cable;RACO liquidtight strain relief cord connectors are suitable for use in Class I, Div. 2; Class II, Div. 1 & 2; and Class III, Div. 1 & 2 hazardous locations
Features Malleable iron construction provides mechanical strength and durability; Neoprene grommets are color-coded by cable diameter allowing for quick and easy identification; Metallic components are zinc plated for corrosion protection; Unique grommet design is forced up and around the cord when the nut is tightened creating a liquidtight seal; Time saving and easy installation - no need to disassemble the fitting for cord installation; Additional colors and sizes available

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.45 in to 0.56 in, Box Connection 1/2 in MNPT, Material - Cord Connector Malleable Iron, External Strain Relief Material No External Strain Relief, Gland Color Code Green, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 45 Degrees , Strain Relief Type No External Strain Relief, Length - Box to End of Connector 2 9/16 in, Insulated No, Standards cULus
