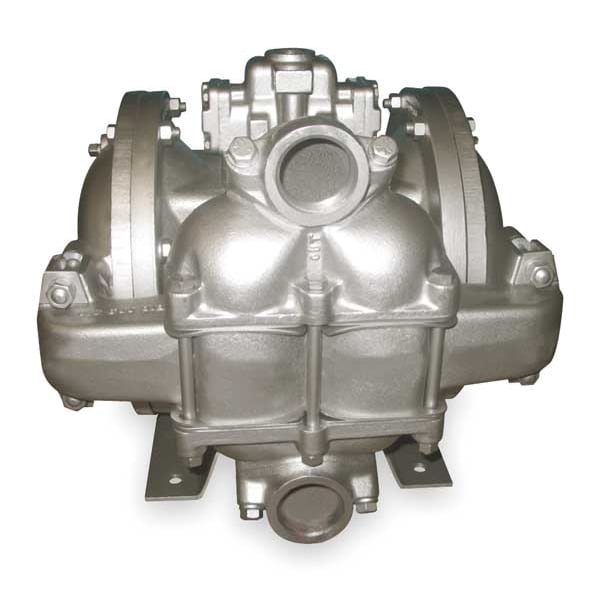

Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 105 GPM

  • Mfr # HDB1 1/2,SS8A.

  • Zoro # G0479464

product price:  $3,009.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HDB1 1/2,SS8A.
Zoro #
G0479464
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
3/4 in
Manufacturers Warranty Length
5 yr
Overall Height
13.9 in
Overall Length
14.8 in
Overall Width
15.5 in
Media Intake Connection Size
1 1/2 in
Solid Diameter (Maximum)
0.25 in
Media Discharge Connection Size
1 1/2 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
Air Intake Connection Type
NPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
Santoprene
Media Temperature (Maximum)
275 Degrees F
Media Temperature (Minimum)
-40 Degrees F
Operating Pressure (Maximum)
125 psi
Agency Compliance
ATEX,ABS, CE, EAC
Self-Priming Wet
25 ft
Pump Operation Type
Air
Self-Priming Dry
20 ft
Standards
ABS Type Approved, CE Marked, EAC Certified, ISO
Inlet/Outlet
1 1/2 in
Media Intake Location
Top
Media Intake Connection Type
NPT
Media Discharge Connection Type
NPT
Flow Rate @ 80 psi
114 gpm
Series Family
HDB1
Flow Rate @ 100 psi
118 gpm
Feet of Head (Maximum)
289 ft
Air Intake Pressure (Maximum)
125 psi
Manifold Connection Type
NPT
Flow Rate @ 40 psi
100 gpm
Media Discharge Location
Bottom
NPSHr
5 ft of head
For Use With Potable Systems
No
Priming
Self-Priming
Flow Rate (Maximum)
122 gpm
Flow Rate @ 20 psi
75 gpm
Flow Rate @ 60 psi
110 gpm
Chemical Compatibility
Wetted Housing Material
Aluminum
Material Conductivity
Conductive
Manifold Connection Standard
NPT
Center Section Material
Aluminum
Series
HDB1 1/2
Media Discharge Port Configuration
Center Horizontal
Displacement Per Stroke
0.37 gal
Wetted Body Material
Aluminum
Includes Solenoid
No Solenoid Included
Diaphragm Reinforcement
Not Reinforced
Fluid Chamber Assembly Type
Bolted
Includes Clean In Place Technology
No Clean In Place Included
Manifold Port Connection Type
Single Port
Mounting Hardware Material
Steel
Diaphragm Base Material
Santoprene
Media Intake Port Configuration
Center Horizontal

Description

Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 122 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Bottom, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type NPT
