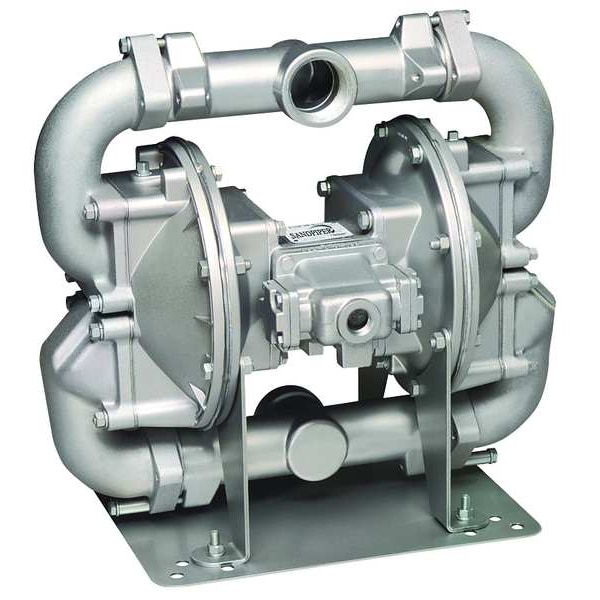

Double Diaphragm Pump, Cast iron, Air Operated, Buna N, 140 GPM

  • Mfr # HDF2,DB6I.

  • Zoro # G2503085

product price:
$
3,494.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Cast-Iron
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Flap
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HDF2,DB6I.
Zoro #
G2503085
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
3/4 in
Manufacturers Warranty Length
5 yr
Overall Height
2.3 in
Overall Width
21.6 in
Overall Length
13.6 in
Solid Diameter (Maximum)
2 in
Media Intake Connection Size
2 in
Media Discharge Connection Size
2 in
Wire Rope Length
13.6 in
Length
13.6 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Cast-Iron
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Flap
Air Intake Connection Type
NPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
Buna-N
Media Temperature (Maximum)
190 Degrees F
Media Temperature (Minimum)
-10 Degrees F
Operating Pressure (Maximum)
125 psi
Self-Priming Wet
29 ft
Agency Compliance
ATEX, CE, EAC
Pump Operation Type
Air
Self-Priming Dry
24 ft
Standards
ABS Type Approved, CE Marked, EAC Certified, ISO
Inlet/Outlet
2 in
For Use With Potable Systems
No
Media Discharge Location
Top
Flow Rate @ 60 psi
178.2 gpm
Priming
Self-Priming
Wetted Housing Material
Cast Iron
Flow Rate @ 80 psi
187 gpm
Feet of Head (Maximum)
231 ft
Flow Rate @ 20 psi
125.1 gpm
Media Discharge Connection Type
NPT
Flow Rate @ 40 psi
155.5 gpm
NPSHr
5 ft of head
Flow Rate @ 100 psi
196 gpm
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Water
Series Family
HDF2
Media Intake Connection Type
NPT
Media Intake Location
Bottom
Flow Rate (Maximum)
208 gpm
Manifold Connection Type
NPT
Air Intake Pressure (Maximum)
125 psi
Includes Solenoid
No Solenoid Included
Displacement Per Stroke
0.47 gal
Material Conductivity
Conductive
Media Discharge Port Configuration
Center Horizontal
Media Intake Port Configuration
Center Horizontal
Diaphragm Base Material
Buna-N
Mounting Hardware Material
Steel
Includes Clean In Place Technology
No Clean In Place Included
Fluid Chamber Assembly Type
Bolted
Series
HDF2
Center Section Material
Aluminum
Wetted Body Material
Cast Iron
Diaphragm Reinforcement
Fabric Reinforced
Manifold Port Connection Type
Single Port
Manifold Connection Standard
NPT

Description

Double Diaphragm Pump, Air Consumption (Maximum) 140 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Buna-N, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 208 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPT, Media Discharge Location Bottom, Center, Media Intake Connection Size 2 in, Media Intake Connection Type NPT
