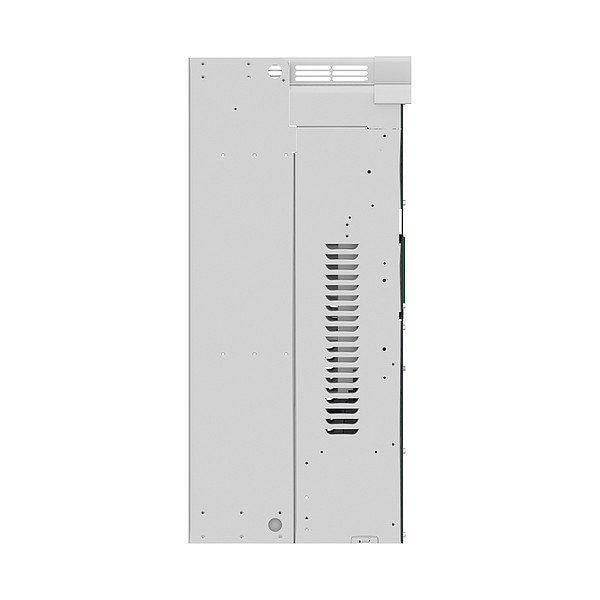

ATV930, Black/Green

Mfr # ATV930C11N4CUS
Zoro # G022732306

21,807.99

Additional $150.00 delivery surcharge applies per item.

Key Features

Input Phase

Three

Adjustable Deceleration Time

0.01 to 9999 sec

Input Type

Analog, Digital

Output Current - Maximum

211 A

Number of Inputs - Analog

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: ATV930C11N4CUS
Zoro #: G022732306
UPC #: -
Country of Origin: United States

Dimensions

Overall Width: 320 mm
Overall Depth: 393 mm
Overall Height: 852 mm

Details

Input Phase: Three
Adjustable Deceleration Time: 0.01 to 9999 sec
Input Type: Analog, Digital
Output Current - Maximum: 211 A
Number of Inputs - Analog: 3
Color: Black/Green
Number of Outputs - Relay: 3
Input Voltage: 380-480V AC
Bypass Design: No Bypass
Includes Brake Chopper: No
IP Rating: IP21
Output Horsepower: 150 hp
Start/Stop Control: Programmable
Includes Communication Port: Yes
Accepts External Control Inputs: Yes
Item: ATV930
Product Type: Variable Frequency Drive
Adjustable Acceleration Time: 0.01 to 9999 sec
Style: Chassis
Number of Inputs - Digital: 10
Application: Industrial
Includes EMI Filter: Yes
Communication Protocols Supported: EtherNet/IP, Modbus Serial, Modbus TCP
Output Power - Kilowatt - Maximum: 90 kW, 110 kW
Includes Ethernet Port: Yes
Torque Application: Constant Torque, Variable Torque
Number of Outputs - Digital: 2
Series: Altivar Process ATV900
Input Frequency: 60/50 Hz
Output Voltage: 480V AC
Dynamic Braking: No
Number of Outputs - Analog: 2
Standards: CE, CSA, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-5-1, TUV, UL, UL 508C
Output Frequency - Maximum: 599 Hz
Protection: Circuit Breaker, Drive Thermal Overload, Overspeed, Overvoltage, Phase Failure, Phase to Phase or Phase to Ground Short Circuit, Safe Torque Off, Undervoltage
Line Contactor Design: With Line Contactor
Output Phase: Three
Control Type: PLC
Output Type: Analog, Digital, Relay

Description

ATV930, Input Voltage 380-480V AC, Input Frequency 60/50 Hz, Output Voltage 480V AC
