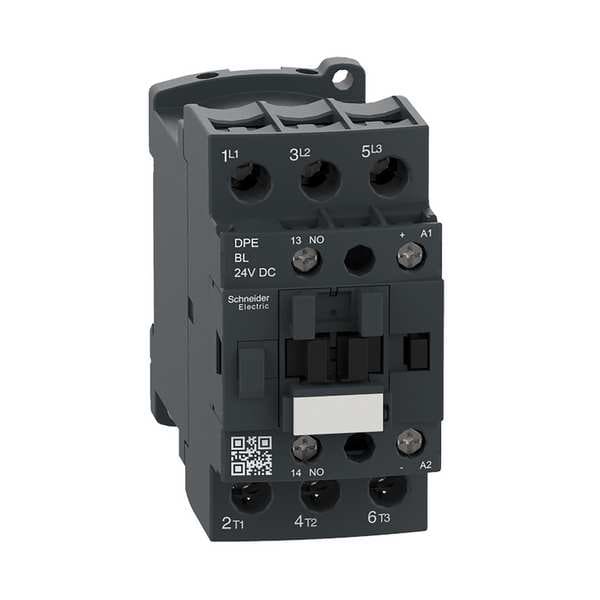

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # DPE32BL

  • Zoro # G403481137

product price:  $69.55
/ea

Key Features

Auxiliary Contact Form
1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DPE32BL
Zoro #
G403481137
UPC #
-
Country of Origin
Indonesia

Dimensions

Overall Height
3.35 in
Overall Width
1.77 in
Working Height
Up to 6561.68 ft
Overall Depth
3.62 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
1
Standards
CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1
HP @ 3 Phase - 575V
20 hp
Enclosure NEMA Rating
3R; 4
Frame / Series / Class / Code
TeSys
Reversing
No
Special Features
Overvoltage Category III; Minimum Switching Voltage 17 V Signalling Circuit; Insulation Resistance 10 MOhm Signalling Circuit
Features
Without Built-In Suppressor Module
Application
Motor Control, Resistive Load
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Tightening Torque
1.7 Nm
Overvoltage Category
CAT III
Rated Insulation Volts
600/690V
Impedance
2 mOhm
Series
TeSys Easy
Control Circuit Voltage Limits
Drop-Out: 0.1 to 0.3 Uc (at 70°C); Operational: 0.8 to 1.25 Uc (at 60°C), 1 to 1.25 Uc (at 70°C)
IP Rating
IP20
Operating Time
65.45 to 88.55 ms (Closing), 20 to 30 ms (Opening)
Switching Current
5 mA (Signalling Circuit)
Impulse Withstand Voltage
6 kV
Non-Overlap Time
1.5 ms
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free, Pollution Degree 3
Rated Breaking Capacity
450 A @ 440V
Switching Voltage
17 V (Signalling Circuit)
Net Weight
0.37 kg
Signalling Circuit Frequency
25 to 400 Hz
Mechanical Durability
10 Mcycles
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Operating Speed
3600 cycles per hr
Electrical Durability
1 Mcycles (32 A, AC-3, Less than 440 V); 0.6 Mcycles (40 A, AC-1, Less than 440 V)
Max. Operating Watts
7.5 kW (at 220 to 230V AC 50/60 Hz), 15 kW (at 380 to 400V AC 50/60 Hz), 15 kW (at 415V AC 50/60 Hz), 15 kW (at 440V AC 50/60 Hz), 18.5 kW (at 500V AC 50/60 Hz), 18.5 kW (at 660 to 690V AC 50/60 Hz)
Watts Loss
2 to 3W
Minimum Operating Temperature
-40 Degrees F
Contactor Style
IEC
NEMA Enclosure Rating
No Enclosure
Maximum Voltage Rating
690V AC
Mounting Style
DIN Rail, Plate
Mechanical Operating Durability
10,000,000
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Three Phase - 600V AC
20 hp
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Full Load Current - Inductive
32 A
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 480V AC
15 hp
Horsepower @ Single Phase - 240V AC
3 hp
Frequency
50/60 Hz
Maximum Operating Temperature
140 Degrees F
Embedded Surge Suppressor
No
Electrical Operating Durability
1,000,000, 600,000
Includes Auxiliary Contacts
Yes
Full Load Current - Resistive
32 A
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within IEC standards. It has a 24 V DC coil and uses screw clamp terminals. With 3 normally open main contacts and 1 NO auxiliary contact, this device is suitable for use with motor control and resistive loads when used within specified parameters. It is part of the TeSys Easy family.

Coil voltage: 24 V DC

  • Poles and contacts: 3 poles; 3 normally open main contacts; 1 NO auxiliary contact
  • Reversing: Non-Reversing
  • Electrical connection: Screw Clamp Terminals
  • Series/Frame: TeSys Easy (IEC)
  • Rated voltage: 690 V AC / 300 V DC
  • Maximum voltage rating: 690 V AC
  • IP rating: IP20
  • Enclosure ratings: 3R; 4
  • Mounting: DIN Rail, Plate
  • Mounts On: Plate, Rail
  • Dimensions (H x W x D): 3.35 in x 1.77 in x 3.62 in
  • Net weight: 0.37 kg
  • Frequency: 50/60 Hz
  • Rated making capacity: 140 A (AC Signalling); 250 A (DC Signalling); 450 A @ 440 V (Power Circuit)
  • Rated insulation voltage: 600/690 V
  • Overvoltage category: CAT III
  • Includes auxiliary contacts: Yes
  • Signalling circuit: 25 to 400 Hz; Switching voltage 17 V; Switching current 5 mA
  • Maximum operating temperature: as specified by manufacturer guidelines
  • Frame: TeSys Easy
  • Number of poles: 3
