Item - Relay

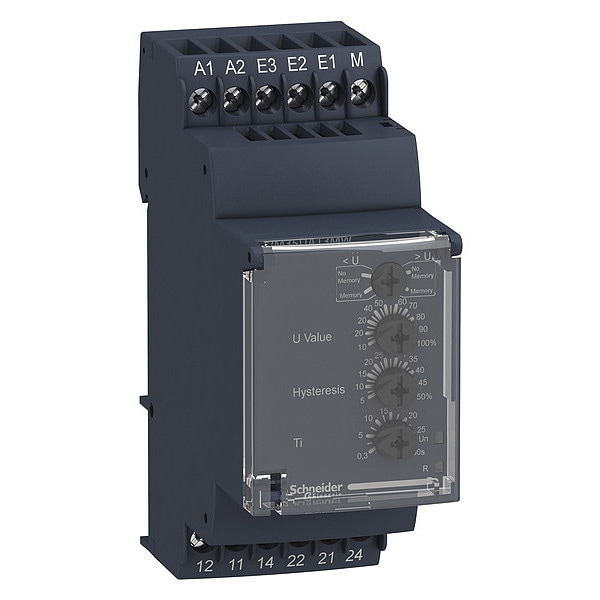

Voltage Sensing Relay
Time Delay Type
adjustable 0.3...30 s, 0 + 10 % on crossing the threshold
[Ui] Rated Insulation Voltage
250 V IEC 60664-1 || 600 V IEC 60664-1
Pollution Degree
3 IEC 60664-1
Mounting Support
35 mm symmetrical DIN rail conforming to EN/IEC 60715
Ambient Air Temperature For Operation
-20-50°C
Utilisation Category
AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
Immunity To Microbreaks
10 ms
Housing Material
self-extinguishing plastic
Dielectric Test Voltage
2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1
Nominal Output Current
5A
[Us] Rated Supply Voltage
24...240 V AC/DC 50/60 Hz +/- 10 %
Maximum Switching Current
5 A AC/DC
Mechanical Durability
30000000 cycles
Relative Humidity
95-95 % 55-55°C IEC 60068-2-30
Contacts Type And Composition
2 C/O
Minimum Switching Current
10 mA 5 V DC
Operating Rate
<= 360 operations/hour full load
Overvoltage Category
III IEC 60664-1
Shock Resistance
5 gn IEC 60068-2-27
Supply Voltage Limits
20.4-264 V AC/DC
Control Circuit Voltage Limits
15 % + 10 % Un
Measurement Accuracy
+/- 10 % of the full scale value
Electromagnetic Compatibility
emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
Relay Monitored Parameters
overvoltage or undervoltage detection
Vibration Resistance
0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Connections - Terminals
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Maximum Switching Voltage
250 V AC/DC
Non-Dissipating Shock Wave
4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5
Maximum Measuring Cycle
30 ms measurement cycle as true rms value
Polarity
non reversible polarity on DC supply
Hysteresis
5-50 % threshold setting
Repeat Accuracy
+/- 0.5 % input and measurement circuit || +/- 2 % time delay
Tightening Torque
0.6-1 N.m IEC 60947-1
Measurement Error
+/- 0.05 %/°C with temperature variation || < 1 % over the whole range with voltage variation
Sensitivity Scale
1...10 V E1-M terminals || 10...100 V E3-M terminals || 5...50 V E2-M terminals
Threshold Setting
10...100 %
Ip Degree Of Protection
IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
Resistance Across Terminals
110 mOhm E2-M terminals || 22 mOhm E1-M terminals || 220 mOhm E3-M terminals
Reset Time
1500 ms time delay
Maximum Power Consumption In W
0.6 W DC
Measurement Range
1...100 V voltage
Operating Position
any position without derating
Run-Up Delay At Power-Up
600 ms
Switching Capacity In Va
1250 VA
Insulation Resistance
> 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
Electrical Durability
100000 cycles
Product Certifications
GOST || C-tick || UL || GL || CSA
Ambient Air Temperature For Storage
-40-70°C
Relay Type
multifunction voltage control relay
Product Or Component Type
voltage control relay
Power Consumption In Va
0-3.5 VA AC
Local Signalling
for power ON LED (green) || for relay ON LED (yellow)
Control Circuit Frequency
40...70 Hz +/- 10 %
