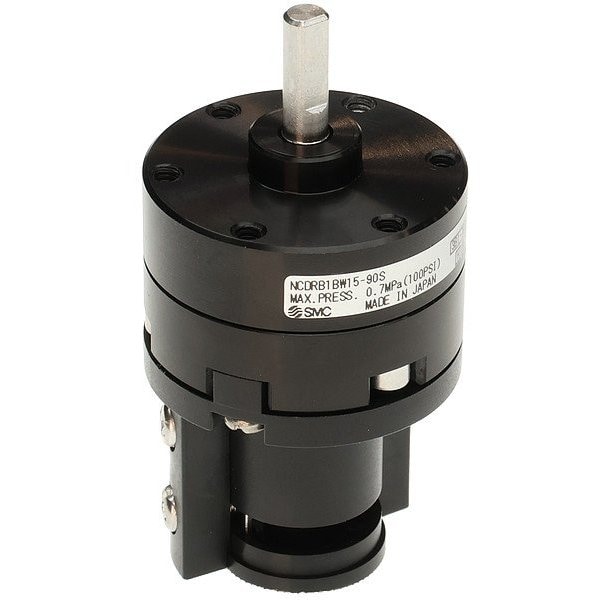

ACTUATOR, ROTARY, VANE TYPE
Mfr # NCDRB1BW15-90S
Zoro # G714533969
product price:Â $149.99
/ea
Free Shipping & Returns
Key Features
Cushion Type
Rubber Cushion
Shaft Length
13.97 mm
System of Measurement
Metric
Maximum Operating Pressure
101.53 psi
Maximum Output Torque
4 in-lb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NCDRB1BW15-90S
- Zoro #
- G714533969
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Shaft Length
- 13.97 mm
- Bore Diameter
- 15 mm
- Inlet Size
- #10-32
- Overall Length
- 34.04 mm
- Shaft Diameter
- 4.76 mm
- Wire Rope Length
- 34.04 mm
Details
- Item
- Rotary Air Actuator
- Cushion Type
- Rubber Cushion
- System of Measurement
- Metric
- Maximum Operating Pressure
- 101.53 psi
- Maximum Output Torque
- 4 in-lb
- Weight
- 0.22 lb
- Maximum Operating Temperature
- 140 Degrees F
- Actuator Style
- Single Vane
- Rotation Angle
- 90 Degrees
- Minimum Operating Pressure
- 20.31 psi
- Air Inlet Type
- UNF
- Output Shaft Type
- Keyed Shaft
- Minimum Operating Temperature
- 41 Degrees F
- Mount Style
- Basic
- Magnetic Piston
- Magnetic Piston
- Standards
- RoHS Compliant
- For Fluid Type
- Air
- Port Location
- Side Ported
Description
Rotary Air Actuator, Actuator Style Single Vane, Maximum Output Torque 4 in-lb, Rotation Angle 90 Degrees , Bore Diameter 15 mm, Maximum Operating Pressure 101.53 psi, Shaft Diameter 4.76 mm, Shaft Length 13.97 mm, Inlet Size #10-32, Air Inlet Type UNF, Cushion Type Rubber Cushion, Magnetic Piston Magnetic Piston, Weight 0.22 lb, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 20.31 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant
