Shop GRACO

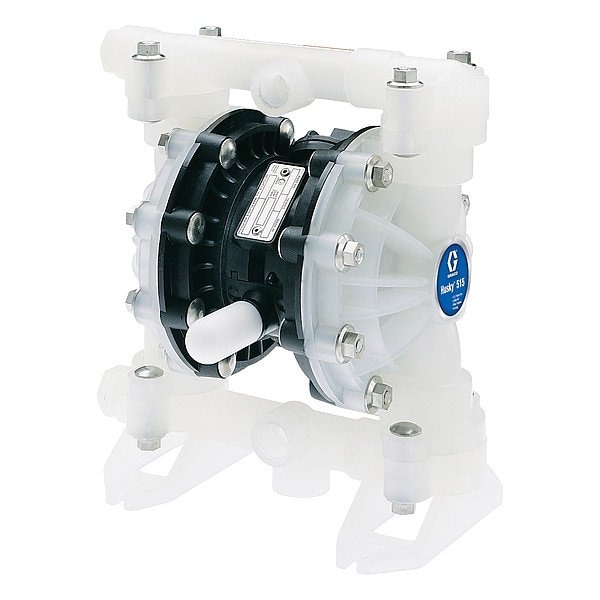

DiaphPump, 1/4inNPT, Santoprene, 15gpm

  • Mfr # D52966

  • Zoro # G316518388

product price:
$
1,039.99
/ea
Free Shipping & Returns

Key Features

Media Discharge Location
Center
Flow Rate (Maximum)
15 gpm
Center Section Material
Polypropylene
Pump Assembly Type
Bolt
Viscosity (Maximum)
5,000 cps
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D52966
Zoro #
G316518388
UPC #
633955902510
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
2 yr
Media Intake Connection Size
1/2 in
Solid Diameter (Maximum)
0.09 in
Media Discharge Connection Size
1/2 in
Overall Width
8.4 in
Overall Height
10.6 in
Wire Rope Length
9.7 in
Air Intake Connection Size
1/4 in
Overall Length
9.7 in
Length
9.7 in

Details

Item
Diaphragm Pump
Media Discharge Location
Center
Flow Rate (Maximum)
15 gpm
Center Section Material
Polypropylene
Pump Assembly Type
Bolt
Viscosity (Maximum)
5,000 cps
Diaphragm Base Material
Santoprene
Manifold Port Connection Type
Multiport
Flow Rate @ 100 psi
15 gpm
Valve Type
Ball
Series
Husky 515
Air Intake Pressure (Maximum)
100 psi
Valve Material
Santoprene
Wetted Body Material
Polypropylene
Media Discharge Connection Type
NPT
Air Consumption (Maximum)
28 scfm
Standards
ATEX Certified, CE Marked
Operating Pressure (Maximum)
100 psi
Check Seat Material
Polypropylene
Air Intake Connection Type
NPT
Pump Operation Type
Air
Media Intake Location
Center
Chemical Compatibility
Antifreeze, Motor Oil
Media Intake Connection Type
NPT
NPSHr
15 ft of head
Media Temperature (Maximum)
150 Degrees F

Description

Diaphragm Pump, Air Consumption (Maximum) 28 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material Santoprene, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 15 gpm, Manifold Connection Multiport, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPT, Media Intake Location Center
