Shop SMC

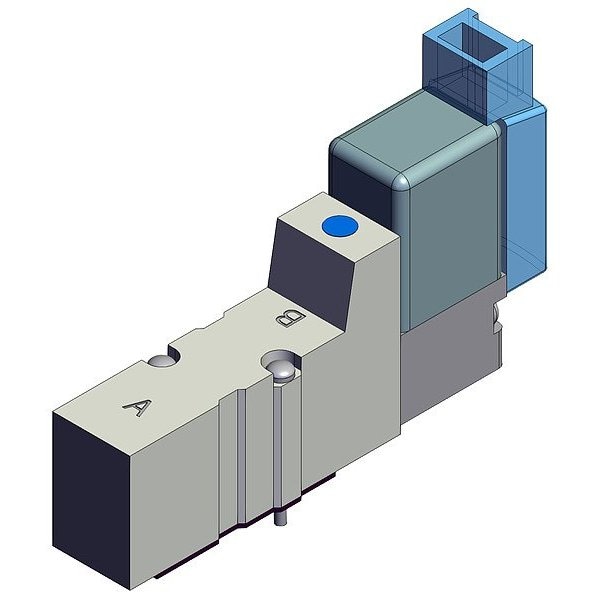

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3143-5MOZ

  • Zoro # G621915438

product price:  $44.19
/ea

Key Features

Coefficient of Volume (Cv)
0.12
Exhaust Port Connection Gender
Female
Product Type
Solenoid Air Control Valve
Operating Temperature - Maximum
50 Degrees C
Power Consumption
0.5 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3143-5MOZ
Zoro #
G621915438
UPC #
-
Country of Origin
Japan

Dimensions

Overall Width
11 mm
Wire Rope Length
64 5/16 mm
Overall Height
39 3/32 mm
Overall Length
64 5/16 mm

Details

Coefficient of Volume (Cv)
0.12
Exhaust Port Connection Gender
Female
Product Type
Solenoid Air Control Valve
Operating Temperature - Maximum
50 Degrees C
Power Consumption
0.5 W
Number of Ways
Five-Way
Operating Pressure - Minimum
0.15 MPa
Lubrication
Lubrication Not Required
Valve Action
Normally Closed
Seal Material
Rubber
Series
SYJ3000
For Media
Air
Voltage
24V DC
Body Style
Base-Mounted
Number of Ports
5
Inlet Port Connection Gender
Female
Response Time
15 msec
Pilot Pressure
0.15 MPa
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Electrical Connection Type
Plug-In
Body Features
Single
Pilot Port Connection Gender
Female
Includes Solenoid Coil
Solenoid Coil Included
Return Action
Spring Return
Number of Positions
Two-Position
Pilot Type
Internal Pilot
Operating Temperature - Minimum
-10 Degrees C
Operating Pressure - Maximum
0.7 MPa
Override
Non-Locking
Valve Type
Spool
Body Material
Die Cast Zinc
Actuator Type
Single Solenoid
Item
Solenoid Air Control Valve

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
