Shop STENNER

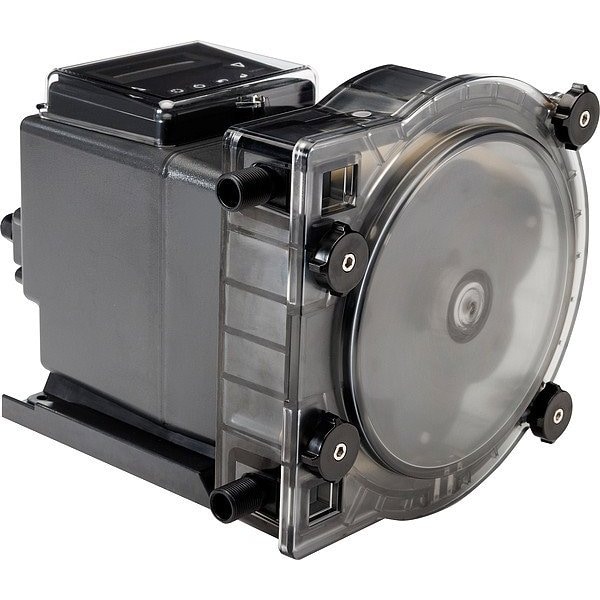

PeristalticChemMeterPump, 315gpd, 100psi

  • Mfr # S505G

  • Zoro # G316557431

product price:  $2,173.99
/ea
Free Shipping & Returns

Key Features

Cord Length
6 ft
Motor Enclosure Design
Totally Enclosed
Fitting Material
Polypropylene/PVC
Media Temperature (Minimum)
32 Degrees F
Motor Mounting Type
Horizontal, Vertical
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S505G
Zoro #
G316557431
UPC #
840034753547
Country of Origin
United States

Dimensions

Cord Length
6 ft
Manufacturers Warranty Length
2 yr
Overall Width
11 in
Overall Length
8.8 in
Overall Height
8.1 in
Intake Connection Size
1/4 in
Discharge Connection Size
3/8 in

Details

Item
Peristaltic Chemical Metering Pump
Motor Enclosure Design
Totally Enclosed
Fitting Material
Polypropylene/PVC
Media Temperature (Minimum)
32 Degrees F
Motor Mounting Type
Horizontal, Vertical
Number of Feeds
1
Seal Type
O-Ring
Standards
CE, cULus, NSF/ANSI 50, NSF/ANSI 372, NSF/ANSI 61
Frequency
60 Hz
Tubing Material
Santoprene
Flow Rate Output Control
Variable
Pressure (Maximum)
100 psi
Phase
Single
Housing Material
Polycarbonate
Intake Connection Type
NPT
Flow Rate (Maximum)
315 gpd
Horsepower (Maximum)
1/16 hp
Media Temperature (Maximum)
104 Degrees F
Seal Material
Santoprene
Roller Material
Polycarbonate
Duty Cycle
Continuous
Ambient Temperature (Maximum)
104 Degrees F
Electrical Connection Type
Plug-In
Control Programs
4-20 mA Input, 7 Day/24 Hour Timer, Cycle Timer, Hall Effect Flow Sensor, Manual Control
Pump Technology
Peristaltic
Reproducibility
+/-2.0%
Discharge Connection Type
NPT
Head Material
Polycarbonate/Santoprene
Flow Rate (Minimum)
3.2 gpd
Degassing Valve Included
No
Turn Down Ratio
100:1
Motor Thermal Protection
Auto
Nameplate Voltage
120V AC
Priming
Self-Priming
Viscosity (Maximum)
1,500 cps
Includes
20 ft Roll of Suction/Discharge Tubing, Additional Pump Tube, Duckbill Check Valve, Weighted Suction Line Strainer, (3) 1/4 in Connecting Nuts, (3) 1/4 in Ferrules

Description

Peristaltic Chemical Metering Pump, Control Programs 4-20 mA Input, 7 Day/24 Hour Timer, Cycle Timer, Hall Effect Flow Sensor, Manual Control, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Flow Rate (Maximum) 315 gpd, Flow Rate (Minimum) 3.2 gpd, Horsepower (Maximum) 1/16 hp, Intake Connection Size 1/4 in, Intake Connection Type NPT, Media Temperature (Maximum) 104 Degrees F, Media Temperature (Minimum) 32 Degrees F, Nameplate Voltage 120V AC, Number of Feeds 1

Restrictions

WARNING: This product can expose you to chemicals including Soots, tars, and mineral oils, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
