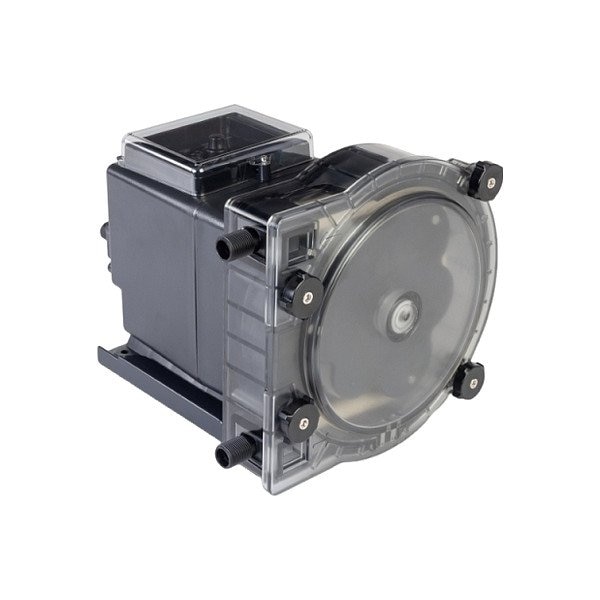

PeristalticChemMeterPump, 125gpd, 100psi

Mfr # S5V7G
Zoro # G515573591

1,716.99

Free Shipping & Returns

Key Features

Flow Rate Output Control

Adjustable

Phase

Single

Cord Length

6 ft

Includes

20 ft Roll of Suction/Discharge Tubing, Additional Pump Tube, Duckbill Check Valve, Weighted Suction Line Strainer, (3) 1/4 in Connecting Nuts, (3) 1/4 in Ferrules

Tubing Material

Santoprene

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Details

MFR #: S5V7G
Zoro #: G515573591
UPC #: 840034753448
Country of Origin: United States
Flow Rate Output Control: Adjustable
Phase: Single
Includes: 20 ft Roll of Suction/Discharge Tubing, Additional Pump Tube, Duckbill Check Valve, Weighted Suction Line Strainer, (3) 1/4 in Connecting Nuts, (3) 1/4 in Ferrules
Tubing Material: Santoprene
Item: Peristaltic Chemical Metering Pump
Standards: CE, cULus, ETL, IAPMO
Turn Down Ratio: 100:1
Number of Feeds: 1
Reproducibility: +/-2.0%
Priming: Self-Priming
Flow Rate (Maximum): 125 gpd
Discharge Connection Type: NPT
Electrical Connection Type: Plug-In
Chemical Compatibility: Acetic Acid 20%,Ammonium Hydroxide,Beer Yeast,Calcium Chloride,Caustic (Sodium Hydroxide),Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Citric Acid 50%,Ethyl Acetate,Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Glucose,Glycerin,Hydrochloric Acid 10%,Hydrochloric Acid 20%,Hydrochloric Acid 30%,Hydrochloric Acid 37%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Muriatic Acid,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Phosphoric Acid 100%,Phosphoric Acid 40%,Phosphoric Acid 40% Solution,Phosphoric Acid 50%,Phosphoric Acid 60%,Phosphoric Acid 70%,Phosphoric Acid 80%,Phosphoric Acid 90%,Potassium Hydroxide 50%,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide,Sodium Hydroxide 20%,Sodium Hypochlorite 10%,Sodium Hypochlorite 5%,Sulfuric Acid 10%,Sulfuric Acid 20%,Sulfuric Acid 30%,Sulfuric Acid up to 10%,Turpentine,Water
Ambient Temperature (Maximum): 104 Degrees F
Roller Material: Polyethylene
Degassing Valve Included: No
Viscosity (Maximum): 1,500 cps
Motor Enclosure: Totally Enclosed
Housing Material: Polycarbonate
Seal Material: Santoprene
Head Material: Polycarbonate
Media Temperature (Minimum): 32 Degrees F
Media Temperature (Maximum): 104 Degrees F
Duty Cycle: Continuous
Horsepower (Maximum): 1/16 hp
Flow Rate (Minimum): 6.3 gpd
Motor Type: Brushless DC
Pressure (Maximum): 100 psi
Intake Connection Type: NPT
Fitting Material: Polypropylene/PVC
Nameplate Voltage: 120V AC
Control Programs: Manual Control
Seal Type: O-Ring
Motor Mounting Type: Horizontal, Vertical
Frequency: 60 Hz
Motor Enclosure Design: Totally Enclosed
Motor Thermal Protection: Auto
Pump Technology: Peristaltic
