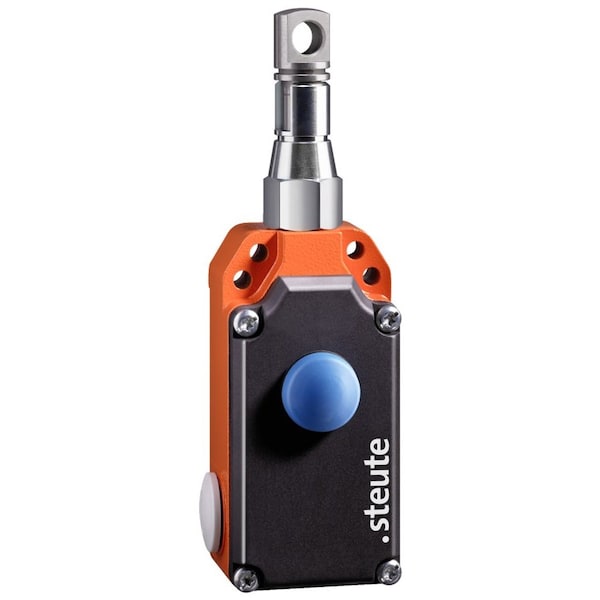

ZS 71 2O/1S VD / 100 N - Emergency Cable Pull Switch with 2NC / 1NO contacts
Mfr # 1185002
Zoro # G323330393
product price:Â $239.99
/ea
Free Shipping & Returns
Key Features
Max. Cable Span
35 mm
Standards
EN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1
Width
52 mm
Includes
One wire thimble provided
Depth
42.5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
1185002
Zoro #
G323330393
UPC #
-
Country of Origin
Germany
Dimensions
Width
52 mm
Depth
42.5 mm
Length
30 mm
Height
171.5 mm
Details
Item
Emergency Pull-Wire Switch
Max. Cable Span
35 mm
Standards
EN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1
Includes
One wire thimble provided
Operating Temperature
–25 °C to +70 °C
Application
Emergency stop / Cable pull safety switch for conveyor systems and industrial machinery
Material
Thermoplastic, Glass-Fibre Reinforced
IP Rating
IP65 (IEC/EN 60529)
Mechanical Life
> 100 000 operations
Finish
Powder-coated (aluminium enclosure)
Short-circuit protection
2 A gG fuse
Utilisation category
AC-15
Color
Orange/Black
Switching Elements
2 NC/1 NO contact, type Zb
Voltage
250 VAC; Ui: 400 V; Uimp: 6 kV
Description
The ZS 71 2O/1S VD / 100 N is a compact metal enclosure emergency pull wire switch designed for wire lengths up to 114ft / 35m. It includes a 100 N spring force variant for stable tensioning and features wire pull and wire break detection. The unit uses snap action, positive break contacts (2 NC / 1 NO) and incorporates a push button release (VD). It offers IP65 protection and a mechanical life exceeding 100,000 operations. Two M20 cable entries and screw terminal connections support flexible installation. Suitable for conveyor systems, material handling equipment, and industrial machinery requiring compact safety switching.
