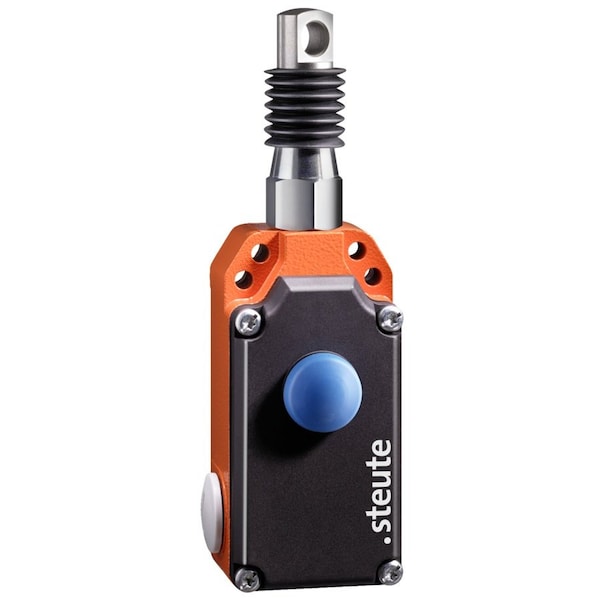

ZS 71 2O/1S WVD / 100 N - Emergency Cable Pull Switch with 2NC / 1NO contacts
Mfr # 1185001
Zoro # G523330377
product price:Â $251.99
/ea
Free Shipping & Returns
Key Features
Max. Cable Span
35 m
Enclosure Material
Aluminium Die-Cast, Powder Coated
Case Material
Thermoplastic, Glass-Fibre Reinforced
Length
42.5 mm
Height
171.5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1185001
- Zoro #
- G523330377
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Length
- 42.5 mm
- Height
- 171.5 mm
- Depth
- 11 mm
- Width
- 52 mm
Details
- Item
- Emergency Pull-Wire Switch
- Max. Cable Span
- 35 m
- Enclosure Material
- Aluminium Die-Cast, Powder Coated
- Case Material
- Thermoplastic, Glass-Fibre Reinforced
- IP Rating
- IP65 (IEC/EN 60529)
- Operating Temperature
- –25 °C to +70 °C
- Application
- Emergency stop / Cable pull safety switch for conveyor systems and industrial machinery
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1
- Includes
- One wire thimble provided
- Utilisation category
- AC-15
- Finish
- Powder-coated (enclosure)
- Short-circuit protection
- 2 A gG fuse
- Voltage
- 250 VAC; Ui: 400 V; Uimp: 6 kV
- Mechanical Life
- > 100,000 operations
- Color
- Orange/Black
- Switching Elements
- 2 NC/1 NO contact, type Zb
Description
The ZS 71 2O/1S WVD / 100 N is a compact emergency pull wire switch engineered for machinery and conveyor systems requiring up to 114ft / 35m wire length. Its aluminum die cast enclosure and reinforced thermoplastic cover provide IP65 protection. The unit includes a 100 N spring force variant for stable wire tension and incorporates wire pull and wire break detection. A watertight collar protects the mechanism from contamination. The switch uses snap action, positive break contacts (2 NC / 1 NO) and includes a push button release (VD). It offers IP65 protection and a mechanical life exceeding 100,000 operations. Two M20 cable entries and screw terminals support straightforward wiring. Ideal for compact conveyor systems, packaging lines, and general industrial safety installations.
