Shop .STEUTE

ZS 80 2O/2S WVD - Emergency Cable Pull Switch with 2NC / 2NO contacts

  • Mfr # 1177916
  • Zoro # G623330376
product price:
$
377.99
/ea
Free Shipping & Returns

Key Features

Max. Cable Span
100 m
IP Rating
IP67 (IEC/EN 60529)
Length
53 mm
Depth
53 mm
Voltage
2 A/250 VAC; 0.25 A/230 VDC; 2 A/24 VDC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1177916
Zoro #
G623330376
UPC #
-
Country of Origin
Germany
Item
Emergency Pull-Wire Switch
Max. Cable Span
100 m
IP Rating
IP67 (IEC/EN 60529)
Voltage
2 A/250 VAC; 0.25 A/230 VDC; 2 A/24 VDC
Case Material
Thermoplastic, Glass-Fibre Reinforced
Mechanical Life
> 100,000 operations
Operating Temperature
–25 °C to +70 °C
Short-circuit protection
2 A gG fuse
Includes
One wire thimble provided
Enclosure Material
Aluminium Die-Cast, Powder Coated
Utilisation category
AC-15; DC-13
Application
Emergency stop / Cable pull safety switch for conveyor systems and industrial machinery
Standards
EN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1
Finish
Powder-coated
Color
Orange/Black
Switching Elements
2 NC/2 NO contacts, type Zb

Description

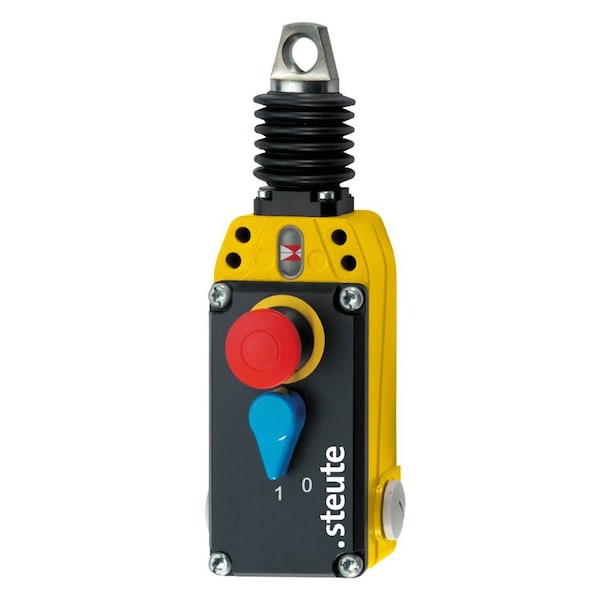

The ZS 80 2O/2S WVD is a heavy duty emergency pull wire switch designed for long conveyor systems and industrial machinery requiring reliable emergency stop functionality. It features a robust aluminum die cast enclosure with a reinforced thermoplastic cover, providing IP67 protection for demanding environments. The device integrates a position indicator and an emergency stop push button, enabling both wire actuated and manual shutdown. It supports wire lengths up to 328ft / 100m and includes a 100 N spring force variant for stable tensioning. The switch uses slow action, positive break contacts (2 NC / 2 NO) and offers wire pull and wire break detection for enhanced safety. Mechanical life exceeding 100,000 operations. Three M20 cable entries and dual 4 pole terminal blocks simplify installation. Suitable for conveyor lines, processing equipment, and general industrial safety applications.
