Shop SUMITOMO

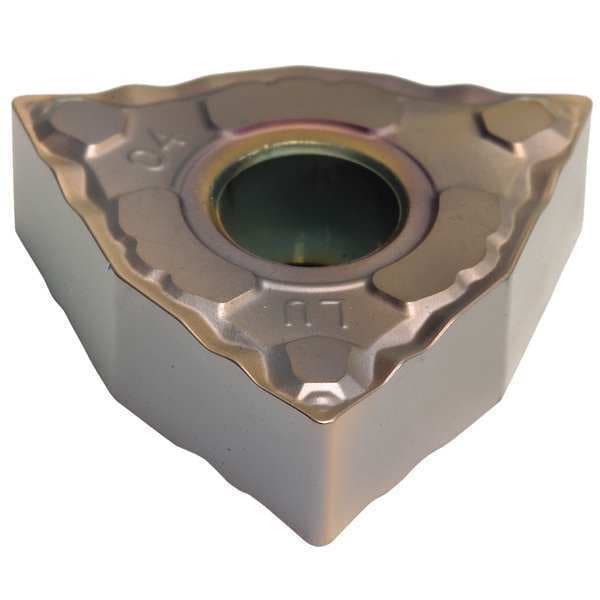

Turning Insert, Trigon, 4, WNMG, 1, Cermet

  • Mfr # WNMG431ELU-T1500Z

  • Zoro # G6377616

product price:  $9.95
/ea
Sold in multiples of 10 for $99.50

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
1/2 in
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
WNMG431ELU-T1500Z
Zoro #
G6377616
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
431
Corner Radius
1/64 in
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.0156"
Thickness
3/16 in
Through Hole Inside Dia.
0.2031 in

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Grade
T1500Z
Insert Material
Cermet
Insert Application
Finishing
Rake
12 Degrees
ISO Number
WNMG080404N-LU
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Hardened (H) Compatibility
No
For Use With
Toolholders, Boring Bars
ANSI Number
WNMG431ELU-T1500Z
Steel (P) Compatibility
Yes
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Stainless (M), Steel (P)
Mounting Style
Screw-On
Cutting Direction
Neutral
Coating
CVD
No. of Edges
3
Cast Iron (K) Compatibility
No
Clearance Angle
0 Degrees
Primary Material Application ISO Code
P
Shape
Trigon
Measurement System
Fractional Inch
Primary Material Application
Steel
Chip-Breaker Code
ELU
Included Angle
80 Degrees
Material - Machining
Cermet
ANSI Code
WNMG431ELU
Chip-Breaker Style
Double Sided
Features
Excellent Wear Resistance
Coating Process
PVD
Manufacturer Grade
T1500Z
Cutting Application
Turning
Insert Holding Type
Straight Hole
Material
Cermet

Description

Turning Insert, Chip-Breaker Code ELU, Inscribed Circle 1/2 in
