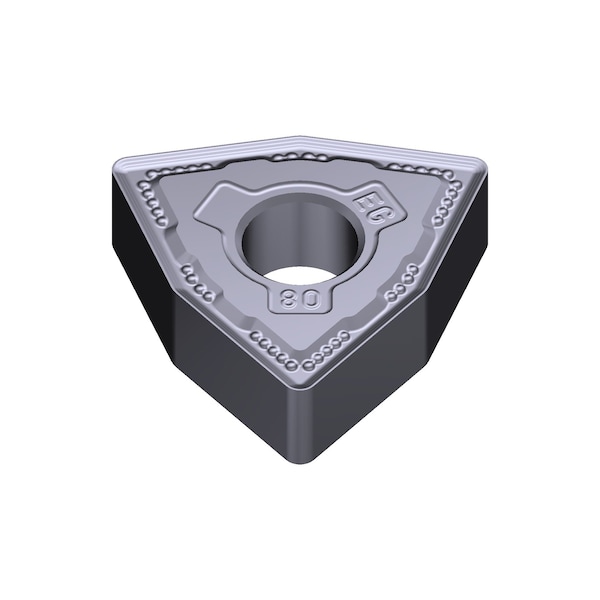

WNMG431 EEG Grade AC5025S Carbide Turning Insert
Mfr # 19T6CNA
Zoro # G508978853
product price:Â $16.39
/ea
Sold in multiples of 10 for $163.90
Key Features
Insert Style
WNMG
Rake
Negative
ISO Number
WNMG080404N-EG
Chip-Breaker
Yes
Insert Size
0.3425 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
19T6CNA
Zoro #
G508978853
UPC #
-
Country of Origin
Japan
Dimensions
Insert Size
0.3425 in
Insert Thickness
0.1874 in
Nose Radius
0.0157 in
Mounting Hole Dia.
5.16 mm
Details
Item
Turning Insert
Insert Style
WNMG
Rake
Negative
ISO Number
WNMG080404N-EG
Chip-Breaker
Yes
Relief Angle
0 Degrees
Insert Material
Carbide
Coating Process
PVD
Tolerance Class
M
Series
AC5000S
Coating
Absotech
Material Application ISO Code
S15, S10, S20
ANSI Number
WNMG431EEG-AC5025S
Workpiece Compatibility
Heat Resistant Alloy; Stainless Steel
Mounting Style
Pin and Clamp
Grade
AC5025S
Included Angle
80 Degrees
Inscribed Circle
1/2 in
Description
