  8. Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

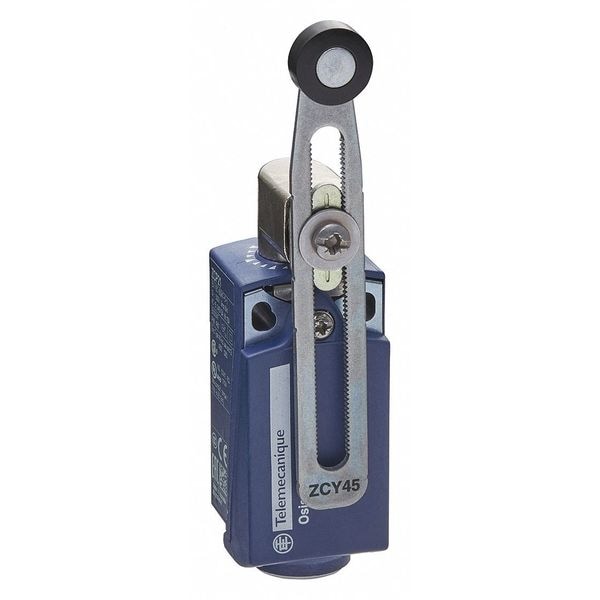

Telemecanique Sensors Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side XCKP2145G11 - main

Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKP2145G11

  • Zoro # G1782864

product price:  $65.99
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKP2145G11
Zoro #
G1782864
UPC #
785901301417
Country of Origin
Indonesia

Dimensions

Width
1.22"
Body Width - Limit Switch
1.22 in
Body Depth - Limit Switch
1.18 in
Height
2.56"
Actuator Length - Limit Switch
1.30 in to 3.29 in
Body Height - Limit Switch
2.56 in
Actuator Length
1.30" to 3.29"
Depth
1.18"
Roller Dia.
0.63 in
Roller Width
0.22 in
Overall Width
1.22 in
Roller Diameter
0.63 in
Body Height
2.56 in
Manufacturer Warranty Length
18 mo
Body Width
1.22 in
Overall Depth
1.18 in
Overall Height
2.56 in
Body Depth
1.18 in
Mounting Hole Diameter
0.17 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Wiring Entry
G11 Metric
Actuator Style
Roller Lever Plunger
Body Style (Limit Switch)
Miniature
Operating Force
0.9 in-lb
DC Contact Rating
0.27 A @ 250 V
Series
XCKP
Stem Thread - Limit Switch
No Stem
Arm Material
Zinc
Basic Actuator Style (Limit Switch)
Rotary
Boot Sealed Actuator (Limit Switch)
No
Mounting Hole - Limit Switch
(2) 0.17 in dia
Actuator Location
Side
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
AC Contact Rating
10 A @ 240 V
Amps
10
Boot Sealed Actuator - Limit Switch
No
Roller Material
Thermoplastic
Contact Form - Limit Switch
1NC/1NO
Mounting Hole Spacing - Limit Switch
0.75 in
IP Rating
IP66, IP67
Contact Form
1NO/1NC
NEMA Rating
1, 12, 13, 2, 4, 6
Body Material
plastic
Movement
CCW, CW
Voltage Rating
240VAC/DC
Limit Switch Style
General Purpose Limit Switch
Electrical Connection
Screw Clamp Terminals
Travel
90 Degrees
Standards
CE, CSA, UL Listed
Operating Temp. Range
-13 Degrees to 158 Degrees F
Actuator Style (Limit Switch)
Rotary, Adjustable Roller Lever
Actuator Location (Limit Switch)
Side
Certification
UL || CSA || CCC
Special Features
lateral approach, 2 directions
Head Material
zamak
Contact Action
snap action
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Short Circuit Protection
10 A cartridge fuse gG
Mechanical Durability
10000000 cycles
Head Type
rotary head
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Min. Actuation Velocity Horizontal
1.5 m/s
Weight
0.145 kg
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Actuation Type
by 30° cam
Number Of Poles
2
Type Of Operator
spring return roller lever thermoplastic variable length
Mounting Style
Surface
Directional Movement
CCW/CW
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Hole Horizontal Center to Center Distance
19 mm
Operating Torque - Maximum
0.9 in-lb
Boot Sealed Actuator
No Boot Included
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Number of Mounting Holes
2

Description

Limit Switch, Actuator Style - Limit Switch Adjustable Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.30 in to 3.29 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature
