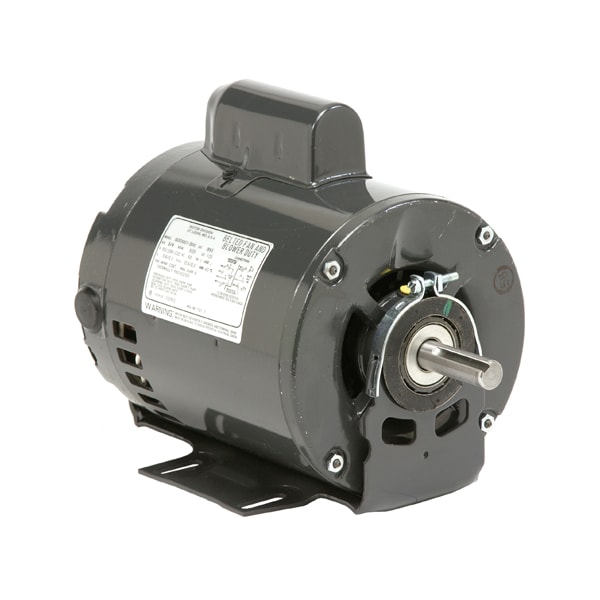

Capacitor-Start/Run General Purpose Motor, 1/6 hp HP, 115V AC Voltage, 48 Frame
Mfr # 3700
Zoro # G4404497
product price:Â $594.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/6 hp
RPM Range
0-1,000
Voltage
115V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 3700
- Zoro #
- G4404497
- UPC #
- 786382003616
- Country of Origin
- Mexico
Dimensions
- Overall Length
- 9 7/16 in
- Shaft Length
- 1 1/2 in
- Length Less Shaft
- 7 15/16 in
- Shaft Dia.
- 1/2 in
- Frame Size
- 48
- Shaft Diameter
- 1/2 in
- Wire Rope Length
- 9 7/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/6 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 4.5 A, 48 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
