Shop U.S. MOTORS

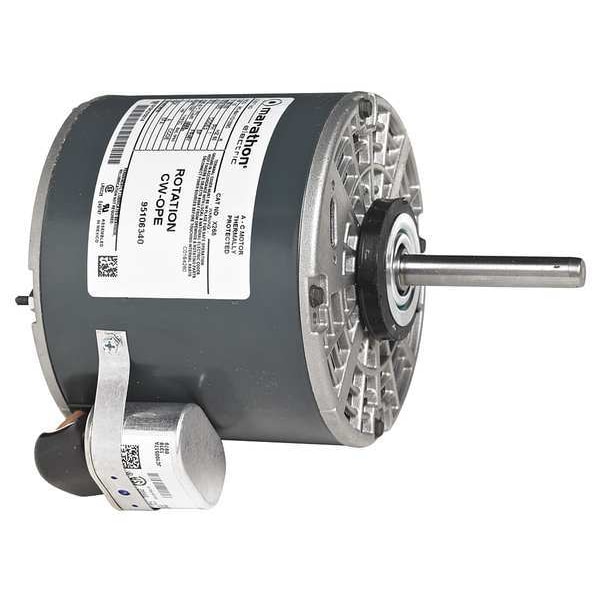

Condenser Fan Motor, 1/3 hp

  • Mfr # 6986

  • Zoro # G1941260

product price:  $203.93
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
1,075
Voltage
208-230V AC
Frame
48
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6986
Zoro #
G1941260
UPC #
786382080709
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
4 in
Bolt Circle Dia.
5 5/8 in
Length Less Shaft
5 23/32 in
Overall Length
9 11/16 in
Manufacturers Warranty Length
1 yr
Body Dia.
5 5/8 in
Lead Length
30 in
Bolt Circle Diameter
5 5/8 in
Shaft Diameter
1/2 in
Frame Size
48Y
Body Diameter
5.6 in
Wire Rope Length
9 11/16 in

Details

HP
1/3
Nameplate RPM
1,075
Voltage
208-230V AC
Frame
48
Motor Shaft Rotation
CWLE
RPM Range
1,001-1,100
Motor Design
Permanent Split Capacitor
No. of Speeds
1
Full Load Amps
3.5 A
Voltage Compatibility
208V AC, 230V AC
Motor Shaft Design
Keyed
Phase
Single
Motor Bearings
Ball
Motor Thermal Protection
Auto
Motor Mounting Type
Resilient Base
Item
Condenser Fan Motor
Motor Sub Application
Condenser Fan
Hz
60/50 Hz
Max. Ambient Temp.
40 Degrees C
Motor Enclosure Design
Totally Enclosed Air-Over
Ins. Class
B
Capacitor Required
Capacitor Included
Motor Mounting Position
Horizontal
Motor Application
HVAC/R
Duty
Continuous
Usable @ 208V
Yes
Standards
CE certified, CSA Group, ISO9001:2015 Certified, UL LLC
Number of Shafts
1
Usable @ 200V
No
Nominal Efficiency
68.9 %
Weight
14.9 lb
Extended Thru-Bolts
Yes
Duty Cycle
Continuous
Conduit Box Position
F1
RPM @ 50Hz
1,075 RPM
Motor Frame Material
Rolled Steel
HP @ 50Hz
1/3
Conduit Box Location
Interior
Full Load Amps @ 50Hz
3.5 A
Sub Application
Condenser Fan
Mounting Position
Horizontal
Number of Speeds
1
Frequency
60/50 Hz
Drive Type
Direct Drive
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Air-Over
Product Type
Condenser Fan Motor
Insulation Class
B
Manufacturers Warranty
1 yr
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed

Description

HVAC Motor, Motor Design Permanent Split Capacitor, Phase Single, 1/3 HP, No. of Speeds 1, Voltage 208-230V AC, Motor Shaft Rotation CWLE, 48 Frame, Motor Enclosure Design Totally Enclosed Air-Over, Resilient Base Motor Mounting Type, Motor Mounting Position Horizontal, Shaft Dia. 1/2 in, Shaft Length 4 in, Motor Thermal Protection Auto, Max. Ambient Temp. 40 Degrees C, Nameplate RPM 1,075, HVAC/R, Condenser Fan, 60/50 Hz, Full Load Amps 3.5 A, Ins. Class B, Motor Bearings Ball
