Shop U.S. MOTORS

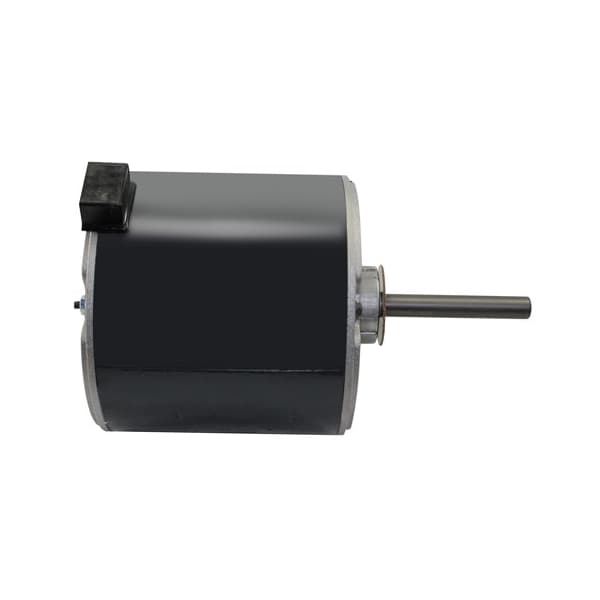

Condenser Fan Motor, 1/3 hp

  • Mfr # LX7922

  • Zoro # G0915790

product price:  $190.99
/ea
Free Shipping & Returns

Key Features

Frame
48
HP
1/3 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LX7922
Zoro #
G0915790
UPC #
786382100629
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
3 29/32 in
Length Less Shaft
5 11/32 in
Body Dia.
5.6"
Manufacturers Warranty Length
1 yr
Overall Length
9 1/4 in
Lead Length
30 in
Frame Size
48Y
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Wire Rope Length
9 1/4 in

Details

Frame
48
HP
1/3 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Band
Motor Shaft Rotation
Counterclockwise Lead End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
None
Nameplate RPM
1075 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Lennox
Phase
3
RPM Range
1,001-1,100
Voltage
380-420/460V
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
60 Degrees C
Duty
Totally Enclosed Air Over
Full Load Amps
1.3A
Capacitor Required
Included
Standards
CSA Certified, UL Listed
Hz
60/50 Hz
Application
Condenser Fan
Voltage Compatibility
380V AC, 420V AC
Number of Speeds
1
Frequency
60/50 Hz
Ambient Temperature - Maximum
60 Degrees C
Insulation Class
B
Sub Application
Condenser Fan
Drive Type
Direct Drive
Product Type
Condenser Fan Motor
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Frame Material
Steel
Full Load Current @ 60 Hz
1.3 A

Description

Motor,1/3HP,1075RPM,460,380-420V, Motor Design Permanent Split Capacitor, Phase Single, 1/3 HP, No. of Speeds 1, Voltage 380-420V AC, Motor Shaft Rotation CCW, 48 Frame, Motor Enclosure Design Open Dripproof, Band Motor Mounting Type, Shaft Dia. 1/2 in, Shaft Length 3 7/8 in, Motor Thermal Protection None, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1,075, HVAC/R, 60/50 Hz, Full Load Amps 1.3 A, Ins. Class B, Motor Bearings Ball, Overall Length 9 1/4 in
