Shop U.S. MOTORS

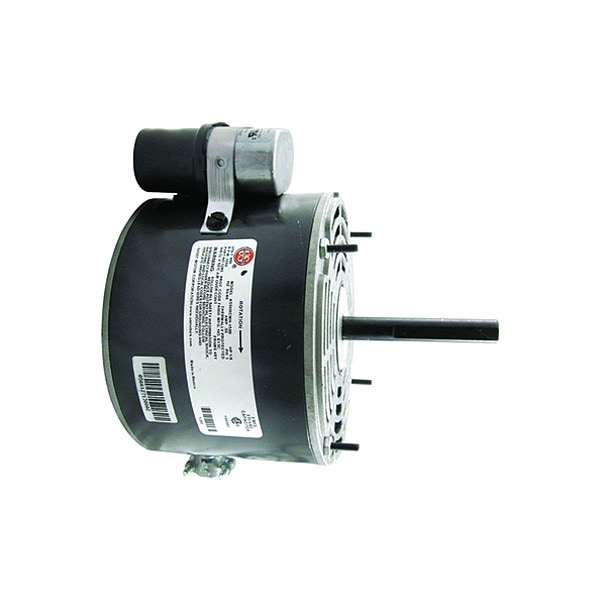

Condenser Fan Motor, 1/4 hp

  • Mfr # 6138

  • Zoro # G0916910

product price:  $283.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,601-1,700
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6138
Zoro #
G0916910
UPC #
786382006174
Country of Origin
Mexico

Dimensions

Shaft Length
3 1/16 in
Body Dia.
5 1/2 in
Length Less Shaft
4 9/16 in
Overall Length
7 19/32 in
Body Diameter
5.5 in
Frame Size
48Y
Wire Rope Length
7 19/32 in

Details

Item
Refrigeration Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,601-1,700
No. of Speeds
1
Voltage
460V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Motor Mounting Position
Horizontal
Motor Thermal Protection
Auto
Max. Ambient Temp.
50 Degrees C
Nameplate RPM
1,625
Motor Application
HVAC/R
Voltage Compatibility
460V AC
Ins. Class
A
Motor Bearings
Ball
Includes
Capacitor
Application
Refrigeration Condenser Fans
Full Load Amps
0.90 A
Hz
60/50 Hz
Standards
CSA Certified, UL Listed
Duty
Open and Totally Enclosed Air Over
Drive Type
Direct Drive
Sub Application
Refrigeration
Full Load Current @ 60 Hz
0.9 A
Frame Material
Steel
Ambient Temperature - Maximum
50 Degrees C
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Air-Over
Product Type
Refrigeration Motor
Number of Speeds
1
Insulation Class
A
Frequency
60/50 Hz
Mounting Position
Horizontal
Capacitor Required
Capacitor Included
Nameplate Service Factor @ 60 Hz
1

Description

Motor,1/4HP,1625RPM,460V,50,60HZ,48Y, Motor Design Permanent Split Capacitor, Phase Single, 1/4 HP, No. of Speeds 1, Voltage 460V AC, Motor Shaft Rotation CW, 48 Frame, Motor Enclosure Design Totally Enclosed Air-Over, Stud Motor Mounting Type, Motor Mounting Position Horizontal, Shaft Length 3 1/16 in, Motor Thermal Protection Auto, Max. Ambient Temp. 50 Degrees C, Nameplate RPM 1,625, HVAC/R, 60/50 Hz, Full Load Amps 0.90 A, Ins. Class A, Motor Bearings Ball, Overall Length 7 5/8 in
