Shop U.S. MOTORS

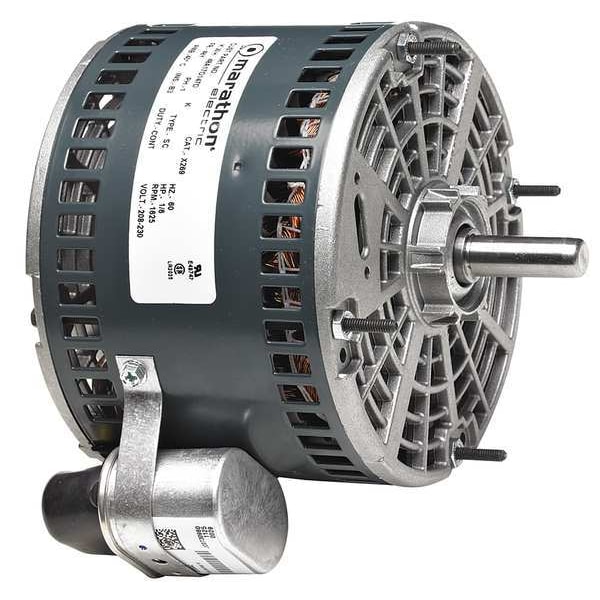

Condenser Fan Motor, 1/6 hp

  • Mfr # 1645

  • Zoro # G8044478

product price:  $226.99
/ea
Free Shipping & Returns

Key Features

HP
1/6
Nameplate RPM
1,550
Voltage
208-230V AC
Frame
48Y
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1645
Zoro #
G8044478
UPC #
786382000998
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 1/8 in
Bolt Circle Dia.
5 1/8 in
Overall Length
6 7/16 in
Stud Size
1/2 in
Body Dia.
5 5/8 in
Length Less Shaft
4 7/16 in
Mounting Stud Length
1/2 in
Mounting Stud Thread Size
1/2"
Body Diameter
5.6 in
Frame Size
48Y
Bolt Circle Diameter
5 1/8 in
Shaft Diameter
1/2 in
Wire Rope Length
6 7/16 in

Details

HP
1/6
Nameplate RPM
1,550
Voltage
208-230V AC
Frame
48Y
Motor Shaft Rotation
CWLE
RPM Range
1,501-1,600
Motor Bearings
Ball
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Motor Mounting Position
All Angle
Capacitor Required
Capacitor Included
Standards
CSA (156060), UL (E22922)
Nominal Efficiency
62.1 %
Motor Shaft Design
Flat
Motor Design
Permanent Split Capacitor
Full Load Amps
1.4 A
Motor Mounting Type
Stud
Ins. Class
A
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Phase
Single
No. of Speeds
1
Duty
Continuous
Item
Condenser Fan Motor
Motor Thermal Protection
Auto
Hz
60 Hz
Motor Enclosure Design
Open Dripproof
Motor Sub Application
Direct Drive Fan/Blower
Motor Service Factor
1
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Mounting Stud Location
Shaft End
Motor Enclosure Type
Open Drip Proof
Drive Type
Direct Drive
Number of Speeds
1
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Product Type
Condenser Fan Motor
Mounting Position
All Angle
Frequency
60 Hz
Insulation Class
A
Full Load Current @ 60 Hz
1.4 A
Bearing Type
Ball
Sub Application
Condenser Fan

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.4 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Stud, Motor Frame Material Steel
