  11. Motor, 1 HP, 1,800 rpm, 143JM, 208-230/460V

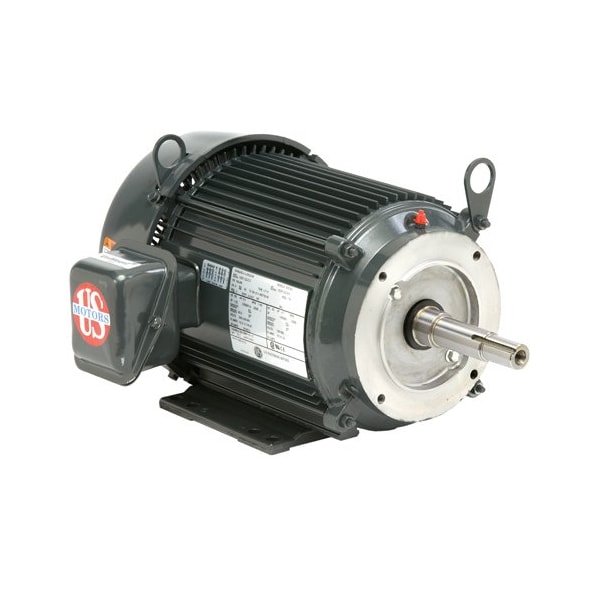

U.S. Motors Motor, 1 HP, 1,800 rpm, 143JM, 208-230/460V UJ1P2DM - main

Motor, 1 HP, 1,800 rpm, 143JM, 208-230/460V

  • Mfr # UJ1P2DM

  • Zoro # G1938160

product price: $451.22
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
HP
1
RPM Range
1,701-1,800
Nameplate RPM
1,800
Voltage
208-230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UJ1P2DM
Zoro #
G1938160
UPC #
786382113827
Country of Origin
Mexico

Dimensions

Shaft Length
4 1/4 in
Overall Length
15 1/4 in
Length Less Shaft
11 in
Shaft Dia.
7/8 in

Details

Item
Close-Coupled Pump Motor
Motor Design
3-Phase
HP
1
RPM Range
1,701-1,800
Nameplate RPM
1,800
Voltage
208-230/460V AC
Frame
143JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.25
Motor Frame Material
Steel
Green Certification or Other Recognition
NEMA Premium(R) Rated
Ins. Class
F
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Standards
CSA (191252), UL (E51488)
Phase
Three
No. of Speeds
1
Motor Application
Pump
Hz
60/50
Inverter Rated
Yes
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Bearings
Ball
Motor Sub Application
Close-Coupled Pump
Nominal Efficiency
85.5 %
Motor Shaft Design
JM Threaded
Duty
Continuous
CC Number
CC030A
Full Load Amps
3.1-3.0/1.50
Conduit Box Position
F1
NEMA Design
B
Duty Cycle
Continuous
Usable @ 208V
Yes
Weight
30 lb
Full Load Amps @ 50Hz
3.1-3.0/1.50
Service Factor @ 50Hz
1.25
Conduit Box Location
Exterior
Finish
Unfinished
Voltage @ 50Hz
208-230/460
RPM @ 50Hz
1,800
HP @ 50Hz
1
Usable @ 200V
No
Regreasable Bearings
Permanently Lubricated Bearings

Description

Close-Coupled Pump Motor, CC Number CC030A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Finish Unfinished, Frame 143JM, Hz 60/50, Full Load Amps 3.1-3.0/1.50, Full Load Amps @ 50Hz 3.1-3.0/1.50, HP 1, HP @ 50Hz 1, Ins. Class F, Inverter Rated Yes, Length Less Shaft 11 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
