Shop CENTURY

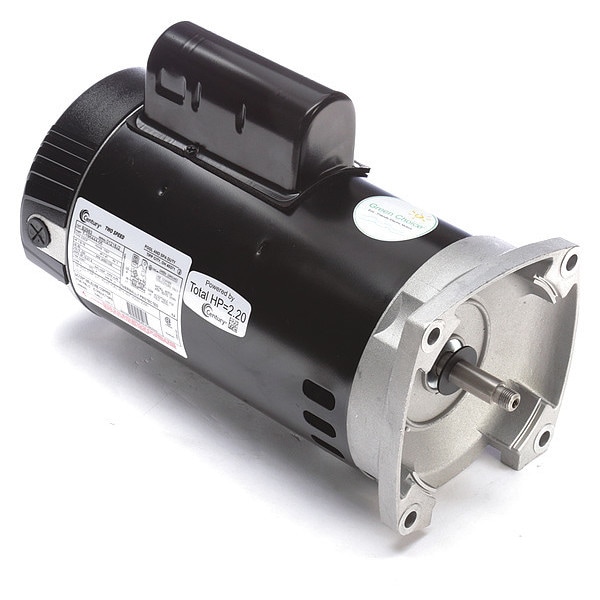

Pool Pump Motor, Capacitor-Start/Run, 1 1/2, 1/6 HP, 56Y Frame, 3,450/1,725 Nameplate RPM

  • Mfr # B2983
  • Zoro # G4482676
product price:
$
537.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1 1/2, 1/6
Motor Service Factor
1.47
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B2983
Zoro #
G4482676
UPC #
-
Country of Origin
China

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 in
Length Less Shaft
13 in
Bolt Circle Dia.
7 1/8 in
Overall Length
13 7/8 in
Height
11 in
Shaft Dia. (In.)
5/8
Shaft Diameter
5/8 in
Frame Size
56Y
Body Diameter
6.5 in
Bolt Circle Diameter
7 1/8 in
Wire Rope Length
13 7/8 in
Length
13 7/8 in

Details

Item
Square Flange Pool Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1 1/2, 1/6
Motor Service Factor
1.47
RPM Range
3,001-3,600
Nameplate RPM
3,450/1,725
Frame
56Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
230V AC
Motor Mounting Type
Face
Full Load Amps
10.0/1.6 A
Motor Efficiency Group
Energy Efficient
Max. Ambient Temp.
50 Degrees C
Motor Sub Application
Pool and Spa Pump
Finish
Black
Motor Bearings
Ball
Shaft Material
303 Stainless Steel
Hz
60 Hz
Motor Thermal Protection
Auto
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Standards
CSA (LR4642), UL (E44549)
Ins. Class
F
Shaft
Threaded 1/2-20 UNF-2A RH
Motor Application
Pump
Max. SF Amps
10.0
Motor Shaft Design
Threaded
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
No. of Speeds
2
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Duty Cycle
Continuous
Weight
38 lb
Application
Pump
Insulation Class
F
Mounting Position
Horizontal
Service Factor Current
10.0 A
Number of Speeds
2
Product Type
Pump Motor
Frame Material
Steel
Frequency
60 Hz
Sub Application
Pool and Spa Pump
Shaft Design
Threaded
Ambient Temperature - Maximum
50 Degrees C
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.47
Number of Wires
15
Full Load Current @ 60 Hz
10.0/1.6 A

Description

Square Flange Pool Pump Motor, Bolt Circle Dia. 7 1/8 in, Duty Cycle Continuous, Finish Black, Frame 56Y, Hz 60 Hz, Full Load Amps 10.0/1.6, Height 11 in, HP 1 1/2, 1/6, Ins. Class F, Length Less Shaft 13 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 10.0, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: CA, NY
