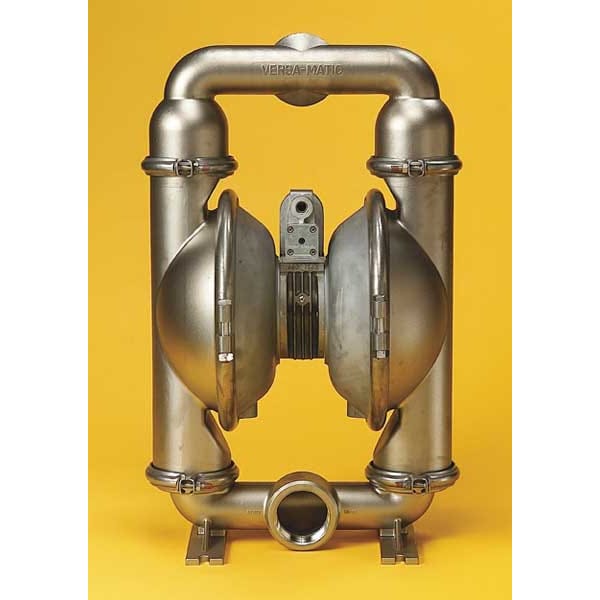

Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene

  • Mfr # E3SA6X660C-ATEX

  • Zoro # G1692056

product price:  $8,107.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Clamp
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E3SA6X660C-ATEX
Zoro #
G1692056
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in
Manufacturers Warranty Length
1 yr
Overall Width
25.1 in
Overall Height
32.1 in
Overall Length
15 in
Media Intake Connection Size
3 in
Media Discharge Connection Size
3 in
Solid Diameter (Maximum)
0.38 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Clamp
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
Air Intake Connection Type
NPT
Check Seat Material
Santoprene
Diaphragm Material
Santoprene
Media Temperature (Maximum)
300 Degrees F
Operating Pressure (Maximum)
125 psi
Self-Priming Dry
20 ft
Agency Compliance
ABS, ATEX, CE, EAC
Pump Operation Type
Air
Self-Priming Wet
25 ft
Standards
ATEX Certified
Inlet/Outlet
3 in
Flow Rate @ 70 psi
60 gpm
Duty Cycle
Continuous
Flow Rate @ 90 psi
60 gpm
Flow Rate @ 40 psi
124 gpm
Air Intake Pressure (Maximum)
125 psi
Media Intake Location
Bottom
Flow Rate @ 50 psi
80 gpm
Flow Rate @ 60 psi
110 gpm
Flow Rate @ 20 psi
140 gpm
Flow Rate @ 10 psi
120 gpm
Series Family
E3
Media Discharge Connection Type
NPT
Flow Rate @ 80 psi
98 gpm
Media Intake Connection Type
NPT
Flow Rate @ 30 psi
78 gpm
Flow Rate @ 15 psi
16 gpm
Wetted Housing Material
316 Stainless Steel
Flow Rate (Maximum)
273 gpm
Media Discharge Location
Top
Flow Rate @ 100 psi
90 gpm
Feet of Head (Maximum)
289 ft
Flow Rate @ 120 psi
22 gpm
Diaphragm Base Material
Santoprene
Mounting Hardware Material
Steel
Displacement Per Stroke
1.36 gal
Includes Clean In Place Technology
No Clean In Place Included
Diaphragm Reinforcement
Not Reinforced
For Use With Potable Systems
No
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Water
Wetted Body Material
316 Stainless Steel
Material Conductivity
Conductive
Center Section Material
Aluminum
Fluid Chamber Assembly Type
Clamp
Media Discharge Port Configuration
Center Horizontal
Series
E3
Includes Solenoid
No Solenoid Included
Manifold Port Connection Type
Single Port
Manifold Connection Standard
NPT
Media Intake Port Configuration
Center Horizontal

Description

Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT, Check Seat Material Santoprene, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 273 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 3 in, Media Intake Connection Type NPT, Media Intake Location Bottom
