  5. Commercial Pressure Gauge, 0 to 5,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

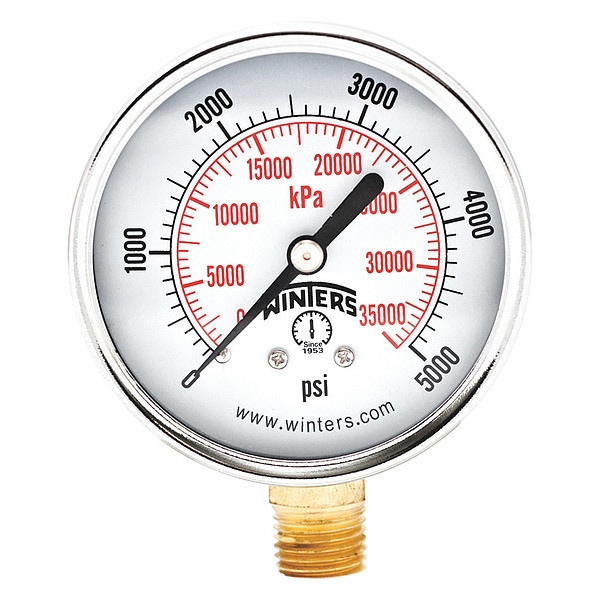

Winters Commercial Pressure Gauge, 0 to 5,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PEM292 - main

Commercial Pressure Gauge, 0 to 5,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PEM292

  • Zoro # G1615325

product price:  $8.79
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM292
Zoro #
G1615325
UPC #
628311200768
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Case Depth
1.102 in
Case Diameter
2.488 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
2 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM
Lens Material
Acrylic
Primary Pressure Range
0 to 5,000
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Smallest Graduation
100 psi/1000 kPa
Gauge Application
General-Purpose Case
Case Color
Black
Gauge Primary Range Numbered Graduations
1000/10000
For Use With
Media Compatible with Bronze
Case Material
Steel
Gauge Primary Range Smallest Graduation
500/5000
Socket Material
Brass
Gauge Secondary Range Values
0 to 35,000
Calibration Certificate Included
No
Standards
ANSI/ASME, CRN
Connection Type
MNPT
Movement Material
Brass
Over-Pressure Limit
25% of Full Scale
Dial Face Material
Aluminum
Pointer Material
Aluminum
Field Fillable
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Process Temperature Range
-40 Degrees to 150 Degrees F
Accuracy Grade
ASME B40.100 Grade B
Compatible Process Media
Non-Clogging, Non-Corroding
Process Connection Gender
Male
Includes Calibration Certificate
No
Non-Sparking
No
Gauge Case Liquid
None
Sensor Material
Phosphor Bronze
Includes Mounting Hardware
No
Secondary Scale Units
kPa
Pressure Gauge Type
Commercial Pressure Gauge
Includes Vent Plug
No
Bezel Material
Steel
Freeze Resistant Movement
No
Vibration Resistance
None
Accuracy Scale
Mid-Scale
Sensor Type
Bourdon Tube
Pressure Range Type
Pressure
Cleaned for Oxygen Service
No
Dry Dampening Feature
None
Secondary Pressure Range
0 to 35,000
Removable Bezel
No
Case Finish
Painted
Pointer Color
Black
Dial Color
White
Case Construction
Welded Joint
Scale Type
Dual
Operating Temperature Range
-40 Degrees to 150 Degrees F
NEMA Enclosure Rating
5
Process Media Temperature - Maximum
150 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Maximum
5,000 psi
Operating Temperature - Minimum
-40 Degrees F
IP Rating
IP52
Case Liquid
None
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
35,000 kPa
Operating Temperature - Maximum
150 Degrees F

Description

Commercial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 5,000, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge, Liquid-Filled Case No
